Hydraulic Trailer Jacks: Working Principle, Types & Industry Prospects
Share
Trailer jacks serve as core supporting hardware for trailers, tasked with lifting and holding the front tongue of trailers during vehicle coupling, decoupling, cargo loading and routine maintenance. Traditional mechanical screw jacks still occupy part of the market, yet hydraulic trailer jacks have gained growing popularity in heavy-load transport scenarios. Relying on fluid pressure instead of manual gear or screw transmission, they deliver stronger lifting capacity and smoother lifting experience. This paper elaborates on the definition, origin, operating logic, classification and future development trends of hydraulic trailer jacks, explaining why they become mainstream lifting solutions for modern heavy-duty trailers.
1. Definition & Main Application Scenarios of Hydraulic Trailer Jacks

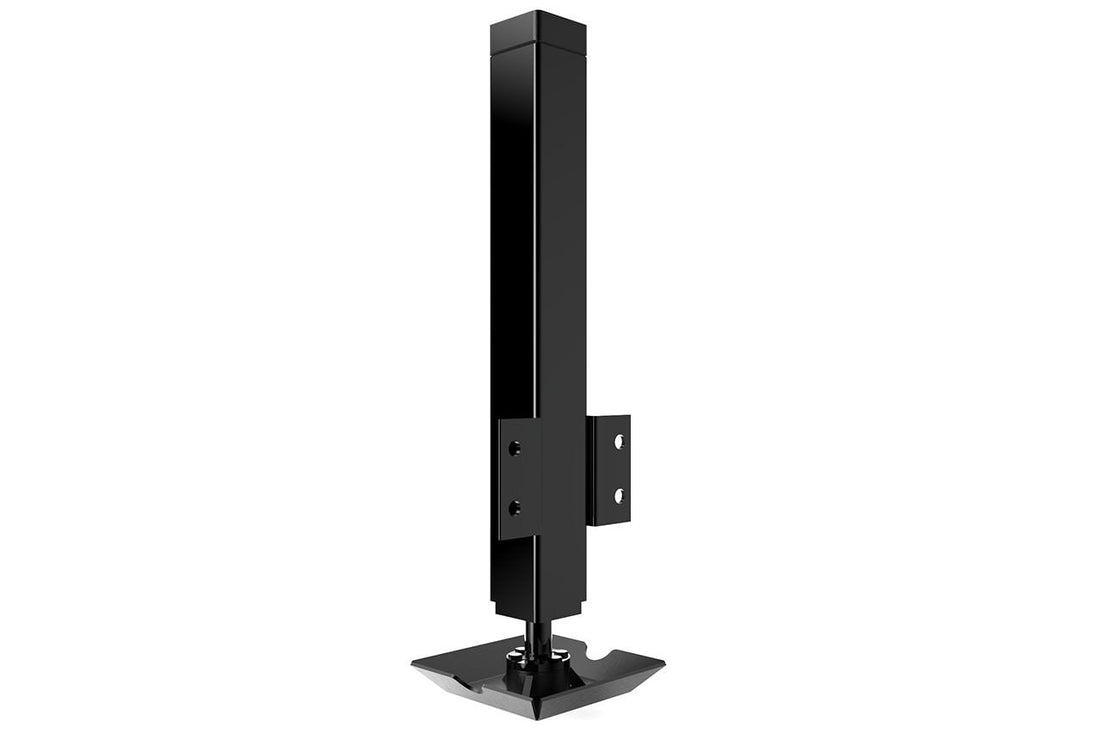

A hydraulic trailer jack is a lifting assembly that generates thrust via pressurized hydraulic oil to prop up the front tongue of trailers. Unlike mechanical jacks driven by hand cranking gears, its core power source comes from hydraulic cylinders driven by high-pressure oil, which can output huge lifting force with minor operation input.
This equipment is widely pre-installed on multiple heavy vehicle models:
- Agricultural transport trailers
- Dumping tipper trailers
- Equipment transport flatbeds
- Gooseneck heavy haul trailers
- Industrial engineering trailers
Thanks to the high power density of hydraulic systems, they are the preferred supporting device for trailers with large dead weight and heavy cargo loads.
2. The Birth Background of Hydraulic Lifting Jacks
With the continuous upgrade of trailer carrying capacity, conventional mechanical jacks gradually exposed obvious functional defects that cannot meet commercial operation demands. Hydraulic trailer jacks were developed to solve these pain points and boost operational safety & efficiency.
| Drawbacks of Traditional Mechanical Jacks | Core Advantages of Hydraulic Trailer Jacks |
|---|---|
| Require heavy physical labor to operate | Minimal manual effort during lifting |
| Slow lifting & retracting speed | Fast lifting circulation to save working time |
| Limited load-bearing ceiling, hard to lift heavy trailers | Extra-large rated lifting tonnage |
| Operators get exhausted after frequent repeated use | Simple operation suitable for long-shift work |
| Lifting process jolts and moves unevenly | Stepless, smooth lifting and lowering |
| Low overall efficiency for mass commercial use | Improve fleet operation productivity |
| Weak stability under full heavy loads | Better structural stability for safety |
As heavy transport, agriculture and industrial logistics expand, hydraulic lifting jacks have become standard configuration for high-load trailers.
3. How Hydraulic Trailer Jacks Operate
The whole lifting cycle follows basic fluid transmission rules, with five clear working steps:
- Pressure generation stage: Manual pump or electric power unit squeezes hydraulic oil to build pressure inside the oil circuit.
- Oil intake into cylinder: Pressurized hydraulic fluid flows into the sealed cavity of the lifting cylinder.
- Piston extension: Oil pressure pushes the internal piston outward, stretching the piston rod.
- Trailer jack-up: The extended piston rod pushes the jack foot against the ground, lifting the trailer’s front tongue upward.
- Load lowering stage: Open the control valve to release internal pressure; hydraulic oil flows back to the storage tank, and the cylinder retracts to lower the trailer.
The whole fluid-driven process eliminates jerky movement and allows precise control of lifting height.
Why Hydraulic Systems Can Lift Massive Weights
The core theory is even pressure transmission inside sealed hydraulic oil. Pressure acts uniformly on the entire surface of the cylinder piston. Under fixed pressure, a larger piston area directly brings greater output thrust. This design allows compact hydraulic cylinders to bear several tons of trailer weight, with outstanding strengths including high thrust output, stable running, smooth lifting, controllable descent and low labor consumption. This hydraulic power principle is also widely adopted in other heavy machinery outside the trailer industry.
4. Two Main Categories of Hydraulic Trailer Jacks
Based on power supply modes, hydraulic trailer jacks fall into manual hydraulic and electric hydraulic two types, matching different usage needs:
4.1 Manual Hydraulic Trailer Jacks
Powered by hand-operated hydraulic pumps without any electric power supply.
- Strengths: Low purchase cost, simple internal structure, no dependence on vehicle batteries
- Applicable vehicles: Small utility trailers, light agricultural machinery trailers, small load transport vehicles
4.2 Electric Hydraulic Trailer Jacks
Equipped with DC drive motors and integrated hydraulic power packs for automatic oil pressure generation.
- Strengths: One-touch control, ultra-fast lifting speed, zero manual labor, fit for frequent repeated operation
- Applicable vehicles: Dumping trailers, heavy equipment carriers, large tonnage long-distance transport trailers
5. Upcoming Development Trends of Hydraulic Trailer Jacks
As trailer intelligent manufacturing advances, the technical iteration directions of hydraulic jacks are concentrated in five aspects:
- Full electric hydraulic integrated power units to replace separate manual pump structures
- Wireless remote control modules for remote lifting operation
- Highly integrated hydraulic pipeline design to reduce oil leakage risks
- Smart trailer linkage technology with load sensing and height automatic adjustment
- Miniaturized compact hydraulic cylinder layout to save trailer installation space
These technical upgrades further enhance operation convenience, job safety and overall work efficiency.
Conclusion
Hydraulic trailer jacks utilize fluid pressure to lift and support trailer front ends, serving as an upgraded substitute for outdated mechanical jacks. They stand out with superior load capacity, smooth operation and higher working efficiency. Mastering their working logic and classification standards helps trailer operators and equipment managers select suitable lifting hardware and fully tap into the performance advantages of hydraulic drive technology. With the continuous growth of trailer maximum load limits, hydraulic jacking systems will remain irreplaceable supporting equipment for heavy-duty transport industries.
