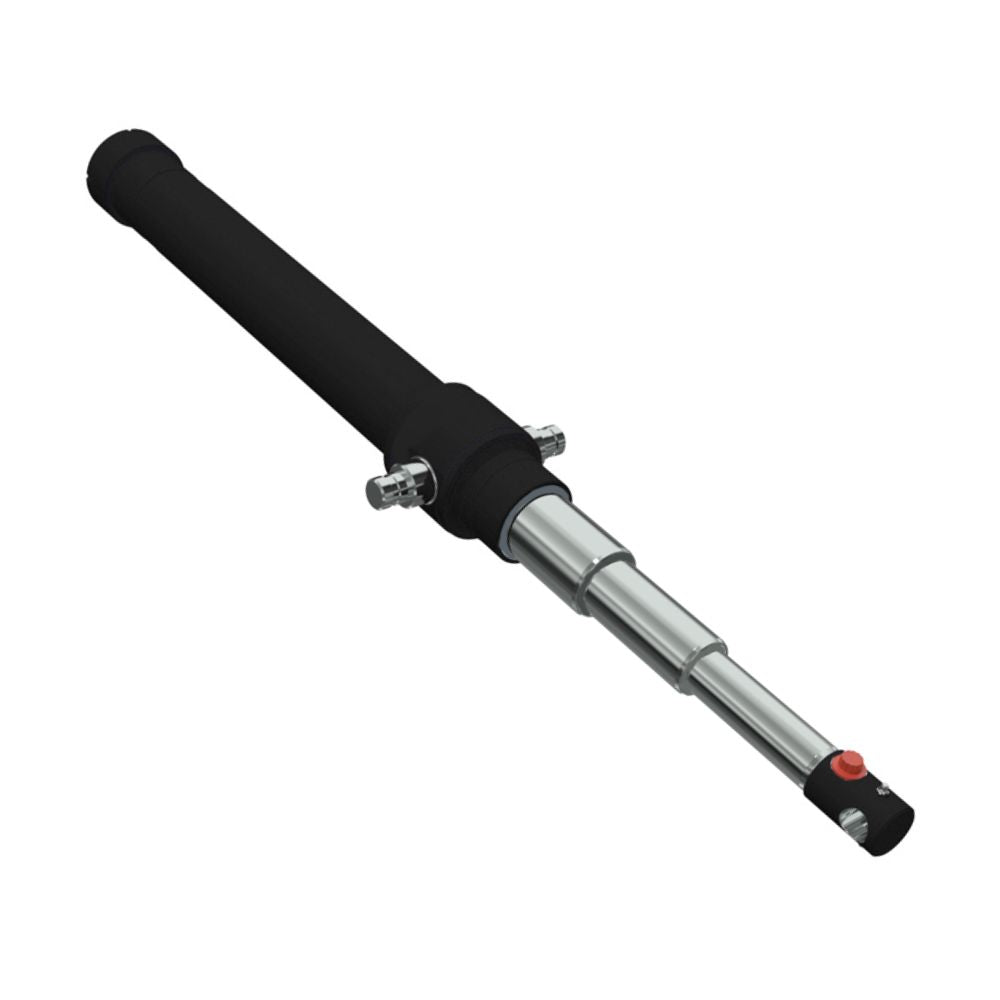

Telescoping Hydraulic Cylinders
Share
Zhongxin telescoping hydraulic cylinders are high-performance hydraulic actuators featured with multi-stage nested structural design. Adopting multiple layered nested cylinder sections, the products can achieve ultra-long working strokes while maintaining an extremely compact retracted size. This unique structural advantage makes Zhongxin telescoping hydraulic cylinders perfectly adaptable to working scenarios that require large vertical lifting travel but face limited horizontal installation space, widely serving diverse industrial mobile lifting and hydraulic transmission equipment.
Key Features
Multi-Stage Nested Structure
The multi-stage telescopic design is the core advantage of Zhongxin telescoping hydraulic cylinders. Each cylinder section is nested layer by layer in a shrinking state, which greatly saves installation and storage space. When working, each stage extends sequentially and stably, realizing a large lifting stroke that ordinary single-stage hydraulic cylinders cannot achieve. It solves the industry pain point of conflicting long stroke demand and limited installation space, and is suitable for various compact and precision installation environments.
Stable and Efficient Operation
Zhongxin optimizes the internal sealing structure and hydraulic transmission logic of the cylinders. The whole extension and retraction process is smooth, stable and free of jitter and stagnation. The optimized hydraulic circuit matching effectively improves the overall operating speed and working reliability of the equipment. It can maintain consistent and stable output performance under long-term continuous operation, reducing operational failures and improving overall work efficiency.
Common Application Scenarios
Dump Trucks
As the core lifting component of dump trucks, Zhongxin telescoping hydraulic cylinders are used to drive the lifting and resetting of cargo beds. With stable lifting power and fast response speed, they support efficient dumping and resetting of materials, greatly improving the loading and unloading efficiency of engineering, transportation and mining vehicles, and adapting to frequent and high-intensity operation scenarios.
Aerial Work Platforms
In confined construction and maintenance spaces, Zhongxin telescoping hydraulic cylinders can provide stable and high vertical lifting travel. They help aerial work equipment complete high-altitude operation, equipment maintenance, building construction and other work, with high lifting stability and safety, meeting the high-precision and high-safety operation requirements of aerial work scenarios.
Material Handling Equipment
The compact retracted size and strong lifting capacity make the cylinders ideal for compact forklifts and various material handling machinery. In narrow warehouse handling, factory logistics and other space-limited working environments, they can efficiently complete material lifting and handling work, balancing equipment flexibility and load-bearing performance.
Product Advantages
Superior High-Reach Lifting Capacity
Relying on the multi-stage telescopic design, the cylinders achieve a multiple-fold stroke extension compared with the retracted length. They can easily meet the lifting demands of high-altitude and large-stroke operation without the need for large-scale auxiliary mechanical equipment, effectively simplifying the operation process and improving the overall operational efficiency of the site.
Excellent Space Adaptability
The fully retracted compact structure greatly reduces the occupied space of the equipment, bringing great convenience for daily storage, equipment transportation and on-site layout. It is highly compatible with various mobile hydraulic equipment, and is the preferred hydraulic component for mobile operation scenarios with strict space restrictions.
Product Disadvantages
Compared with ordinary single-stage hydraulic cylinders, the multi-stage nested structure of Zhongxin telescoping hydraulic cylinders is more sophisticated, with more matching moving parts and sealing components. The complex structural design leads to relatively higher daily maintenance requirements. Regular inspection and maintenance of sealing parts, sliding components and hydraulic oil circuits are required to ensure long-term stable operation of the cylinders and extend service life.
Conclusion
Zhongxin telescoping hydraulic cylinders are indispensable core hydraulic components in modern engineering machinery, logistics handling and aerial work industries. Combining compact structure, large stroke and stable operation performance, they perfectly solve the matching problem of long-stroke lifting and limited space, and are widely applicable to dump trucks, aerial work platforms, compact handling equipment and various customized hydraulic lifting systems.
Although the multi-stage structure brings certain maintenance costs, its unique space-saving and high-reach advantages cannot be replaced by ordinary hydraulic cylinders. Adhering to strict production and quality control standards, Zhongxin provides high-reliability telescoping hydraulic cylinder products for global users. We support standardized and customized solutions to meet the diversified and personalized operational needs of different industries and working conditions.
