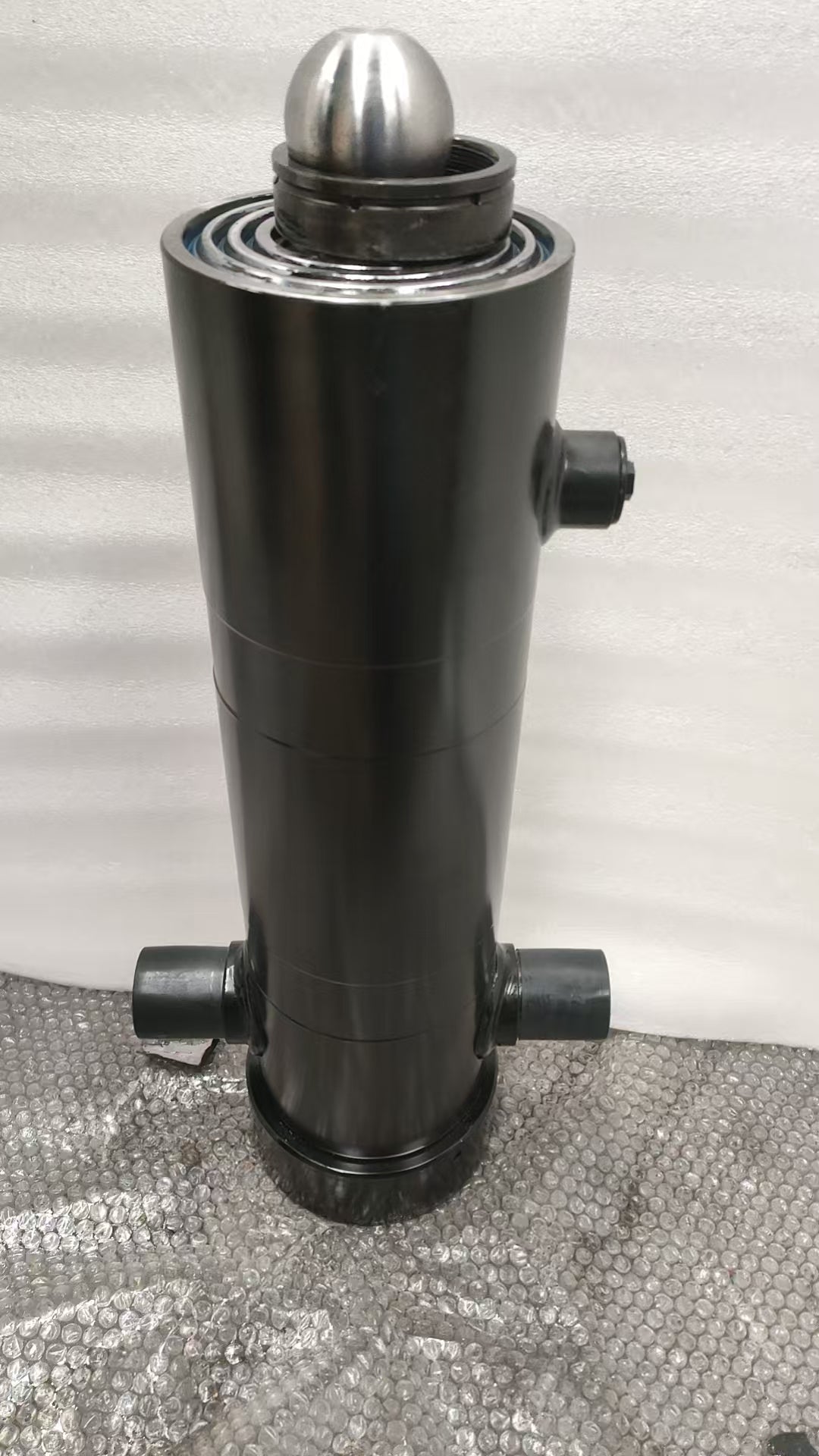

Гидроцилиндр МАЗ 503a-8603510-03

Гидроцилиндр МАЗ 503a-8603510-03

$177.07 USD
$177.07 USD
Sale Sold out
Taxes included.

  • Подъем платформы (кузова) МАЗ осуществляется за счет телескопического гидроцилиндра 503А-8603510. Гидроцилиндр обеспечивает возможность разгрузки на на три стороны и имеет три штока диаметром: 118/99/80 мм. Ход гидроцилиндра составляет 1280 мм., рабочее давление 16 МПа, грузоподъемность 10 тонн. Предназначен для моделей МАЗ 503А, МАЗ 5551, для полуприцепов ПСТ-9 и ПСТБ-9.

Technical Specifications

Обозначение  503А-8603510-03
Аналоги сторонних производителей

 		ЦГС.16.Ц.С.75.95.117-1280 / 503А-8603510-03 / КГЦ 575.3-120-1280
Грузоподъемность (т)   12
Общий ход (мм)  1280
Количество штоков   3
Диаметр штоков  118/99/80
Тип установки  Подкузовная
Используется на моделях   МАЗ 503А / МАЗ 5551 / ПТС-9 / ПТСБ-9
MAZ 503A / MAZ 5551 / PTS-9 / PTSB-9
Регламентируемое гидравлическое масло
 		И20А ГОСТ20799-88 лето / И12А ГОСТ20799-88 зима
Рабочее давление (МПа)   16
Вес (кг)  50

Applications



l Dump trucks & tipper trailers

l Agricultural trailers (grain, silage, and bulk transport)

l Construction equipment for sand, gravel, and earthmoving

l Mining and heavy transport vehicles



Designed to improve efficiency and reliability in all tipping and unloading operations.

Packing&Shipping

Packing:Packed by PP bag and then in wooden box,also packed according to customer' request.

Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.

Company Introduction

Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.

Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:

Materials Handling Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front End Loaders.

Agricultural Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses, Slashers & Mowers.

Waste Management Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.

Transport Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.

Custom as your special requirements

Inspection Equipment

FAQ

1.What kind of products do you sell?


We specialize in hydraulic cylinders and cylinder components.

2.What are Your Lead times for standard Cylinders?

Generally ,It will be longer for the 1st order, because we need to issue all the set production drawings ,and some details need to double confirm. it is about 40-45 days .
For 2nd and following order, It is about 30-35 days after the deposit received.We can discuss if some special status.

3.Do you Provide technical Assistance?
Yishui Zhongxin Machinery Co.,ltd is supported by a team of dedicated and experienced hydraulic design engineers with years of knowledge in the working of hydraulic cylinders.

4.Warantty?
Generally,Zhongxin Machinery will replace or repair defective articles for free Within 1 years from time of the delivery.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.

Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.

Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date

5,Seals
NOK(Japan),Hallite(UK),TRELLEBORG(Sweden),ASTON(Italy),Kaden(Italy) , or As your special requirements
