Comprehensive Guide to Telescopic Hydraulic Cylinders

Comprehensive Guide to Telescopic Hydraulic Cylinders

Looking to unlock the full potential of your hydraulic system? Telescopic hydraulic cylinders offer a host of advantages that can help you do just that. Widely used in construction, agriculture, mining, and material handling, these cylinders are engineered to deliver performance in demanding environments. In this guide, we’ll explore the ins and outs of telescopic hydraulic cylinders—how they work, their key benefits, common applications, and essential maintenance tips. By the end, you’ll have a thorough understanding of how these components can enhance your machinery’s efficiency and reliability.

Understanding Telescopic Hydraulic Cylinders

In hydraulic systems, efficiency and durability are paramount. Telescopic hydraulic cylinders stand out as a versatile solution, designed to address the challenge of achieving long stroke lengths without sacrificing space. Let’s break down their core features:

What Sets Them Apart?

Unlike traditional hydraulic cylinders, which rely on a single piston and rod to move loads, telescopic cylinders use a series of nested, concentric stages (or “tubes”). These stages extend and retract sequentially as hydraulic pressure is applied, allowing for significantly longer strokes while keeping the cylinder’s collapsed length compact. This design is a game-changer for applications where space is limited but extended reach is critical.

How They Work

Telescopic cylinders operate on the same fundamental principle as standard hydraulic cylinders: hydraulic fluid pressure is converted into mechanical force. The key difference lies in their multi-stage construction. When pressure is applied, the largest (outermost) stage extends first, followed by successively smaller inner stages, creating an extended stroke. When pressure is released, the stages retract—often aided by the load’s weight (in single-acting designs) or hydraulic pressure from the opposite end (in double-acting designs)—collapsing back into a compact form.

Key Benefits

  • Extended Stroke Length: Their nested design enables much longer strokes than traditional cylinders of the same collapsed length, making them ideal for tight spaces.
  • High Load Capacity: Engineered to handle heavy loads and high-pressure systems, they’re a staple in industrial and heavy machinery.
  • Durability: The robust, multi-stage structure resists bending and misalignment, even under stress, extending their service life.
  • Space Efficiency: By maximizing stroke length without increasing collapsed size, they fit seamlessly into equipment where space is at a premium.

Types of Telescopic Hydraulic Cylinders

Telescopic cylinders are categorized based on their operational direction and retraction capabilities. Choosing the right type depends on your application’s specific needs:

1. Single-Acting Telescopic Cylinders

These cylinders extend using hydraulic pressure but retract passively, typically relying on the load’s weight or external force (e.g., gravity). They’re cost-effective and simple, making them popular in applications like dump trucks, where the load’s weight helps retract the cylinder after dumping.

2. Double-Acting Telescopic Cylinders

Double-acting cylinders use hydraulic pressure for both extension and retraction. This allows for precise control over movement in both directions, making them suitable for applications requiring controlled, bidirectional motion—such as cranes or agricultural machinery where precise positioning is critical. They’re more complex than single-acting models but offer greater versatility.

3. Non-Retractable Telescopic Cylinders

Designed for applications requiring a fixed extended length, these cylinders extend using hydraulic pressure but do not retract automatically. Retraction must be done manually or with external equipment. They’re used in specialized scenarios, such as fixed-height supports in construction or mining.

Applications of Telescopic Hydraulic Cylinders

Telescopic hydraulic cylinders are indispensable across industries where long strokes, heavy loads, and space efficiency are required. Here are their most common uses:


  • Construction Equipment: Found in cranes, excavators, backhoes, and aerial lifts, they enable extended reach for lifting, digging, and material placement.
  • Agricultural Machinery: Used in harvesters, tractors, and sprayers, they adjust implements (e.g., plows, headers) to varying heights and angles, adapting to field conditions.
  • Mining Equipment: Critical for underground and surface mining machinery, they power conveyor systems, drilling rigs, and ore handlers, withstanding harsh, dusty environments.
  • Material Handling: Forklifts, loaders, and telescopic handlers rely on these cylinders to lift heavy loads to significant heights, streamlining warehouse and logistics operations.

Maintenance and Troubleshooting

To keep telescopic hydraulic cylinders performing at their best, proactive maintenance is essential. Here’s how to ensure longevity and minimize downtime:

Preventive Maintenance Tips

  • Regular Inspections: Check for leaks, damaged seals, or dents on piston rods and stages. Even minor damage can lead to fluid contamination or reduced performance.
  • Fluid Quality: Use clean, manufacturer-recommended hydraulic fluid and replace filters regularly to prevent contamination, which can wear down seals and stages.
  • Lubrication: Ensure moving parts (e.g., bearing surfaces) are properly lubricated to reduce friction and wear.
  • Proper Storage: If stored for extended periods, keep cylinders in a clean, dry environment and retract stages fully to prevent corrosion.

Common Issues and Solutions

  • Leaking Seals: Often caused by wear, contamination, or improper installation. Replace seals promptly and ensure fluid is clean.
  • Bent or Damaged Stages: Can occur due to overloading or misalignment. Replace damaged stages to avoid further system damage.
  • Slow or Uneven Extension/Retraction: May indicate clogged ports, low fluid levels, or pressure issues. Check for blockages and verify hydraulic system pressure.

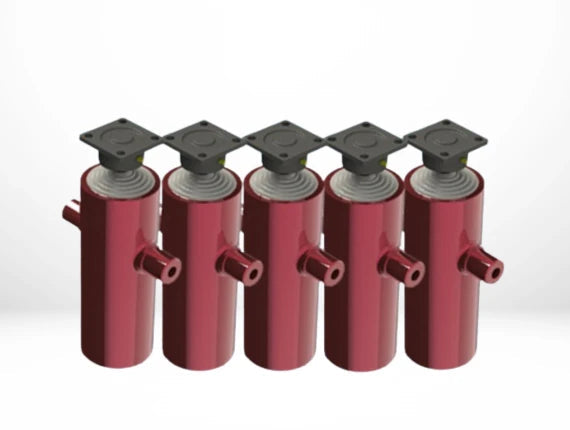

Telescopic Cylinders for Tipper Trucks

Telescopic hydraulic cylinders are especially critical for tipper trucks and semi-trailers, where they power the lifting mechanism to dump loads efficiently. Here are examples of specialized designs:


  • Telescopic Cylinder for Tipping Semi-Trailers (7035mm):
    • First stage diameter: 174mm
    • Stroke: 7135mm
    • Stages: 5
    • Mounting: Retractable (30mm, tolerance +20/0)
    • Working pressure: 190 bar (max. 220 bar)
    • Actuator volume: 117L
    • All stages feature 25μm (±5) chrome plating for corrosion resistance.
  • Telescopic Cylinders for Tipping Semi-Trailers (4000mm–8000mm):
    • Materials: Cold-drawn ST 52 pipes for strength.
    • Chrome plating: 25μm (±5) on all actuators.
    • Finish: RAL 9005 (Jet Black) paint, 40–50μm thick on the outer cover for durability.

Conclusion

Telescopic hydraulic cylinders are a cornerstone of modern industrial machinery, offering a unique blend of extended reach, space efficiency, and durability. Whether in construction, agriculture, or mining, their ability to deliver long strokes in compact designs makes them irreplaceable. By understanding their types, applications, and maintenance needs, you can ensure your hydraulic systems operate at peak performance. Remember: regular maintenance and choosing the right cylinder for your application are key to maximizing efficiency and lifespan. With telescopic hydraulic cylinders, you’re investing in a component that’s built to handle the demands of your work—today and tomorrow.
