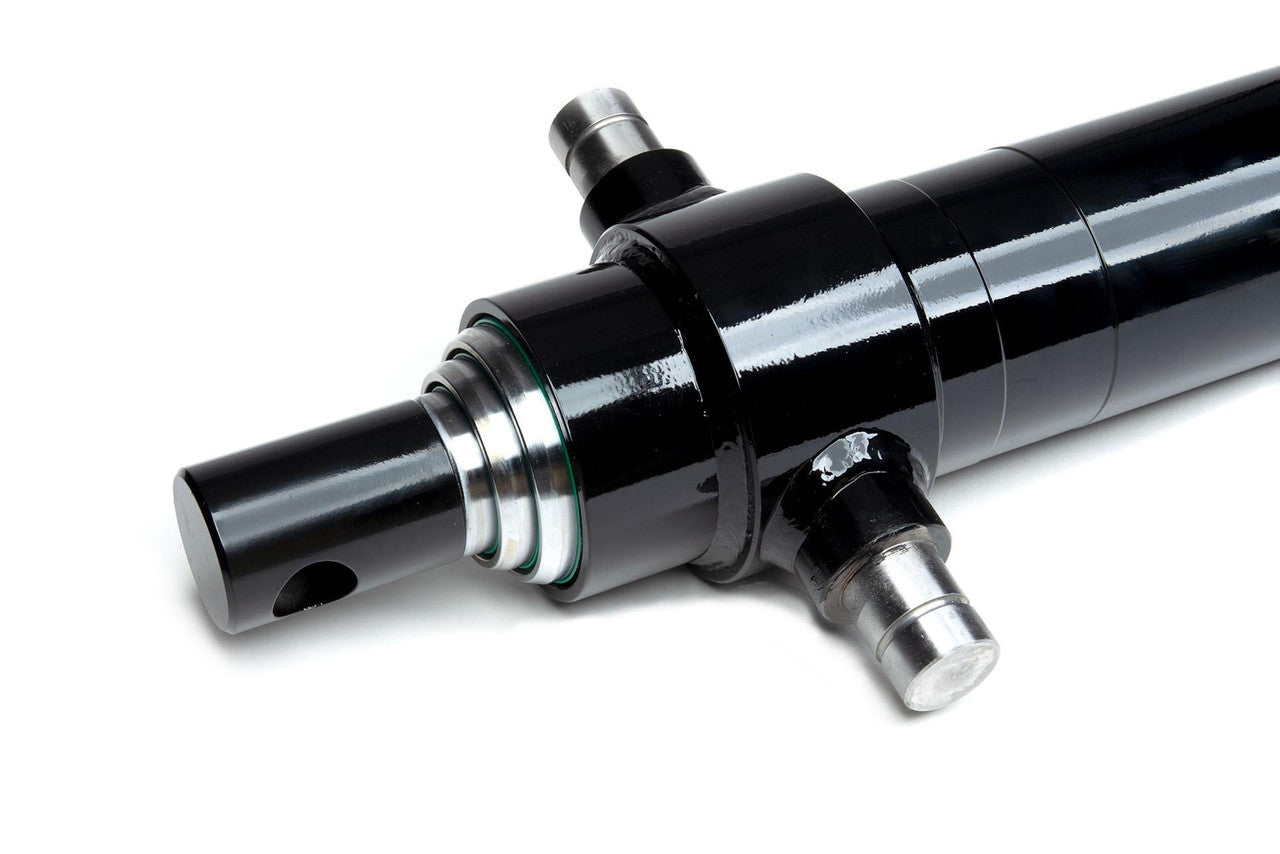

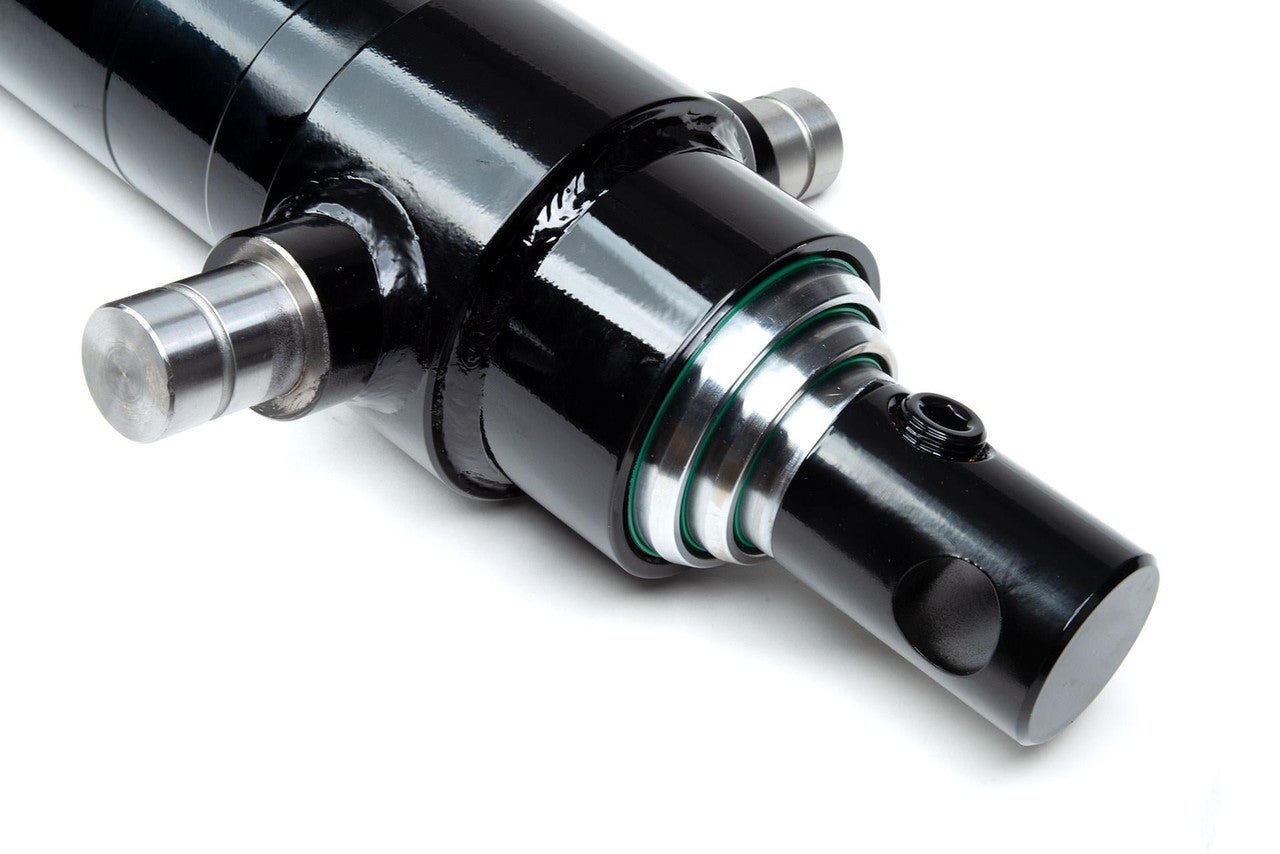

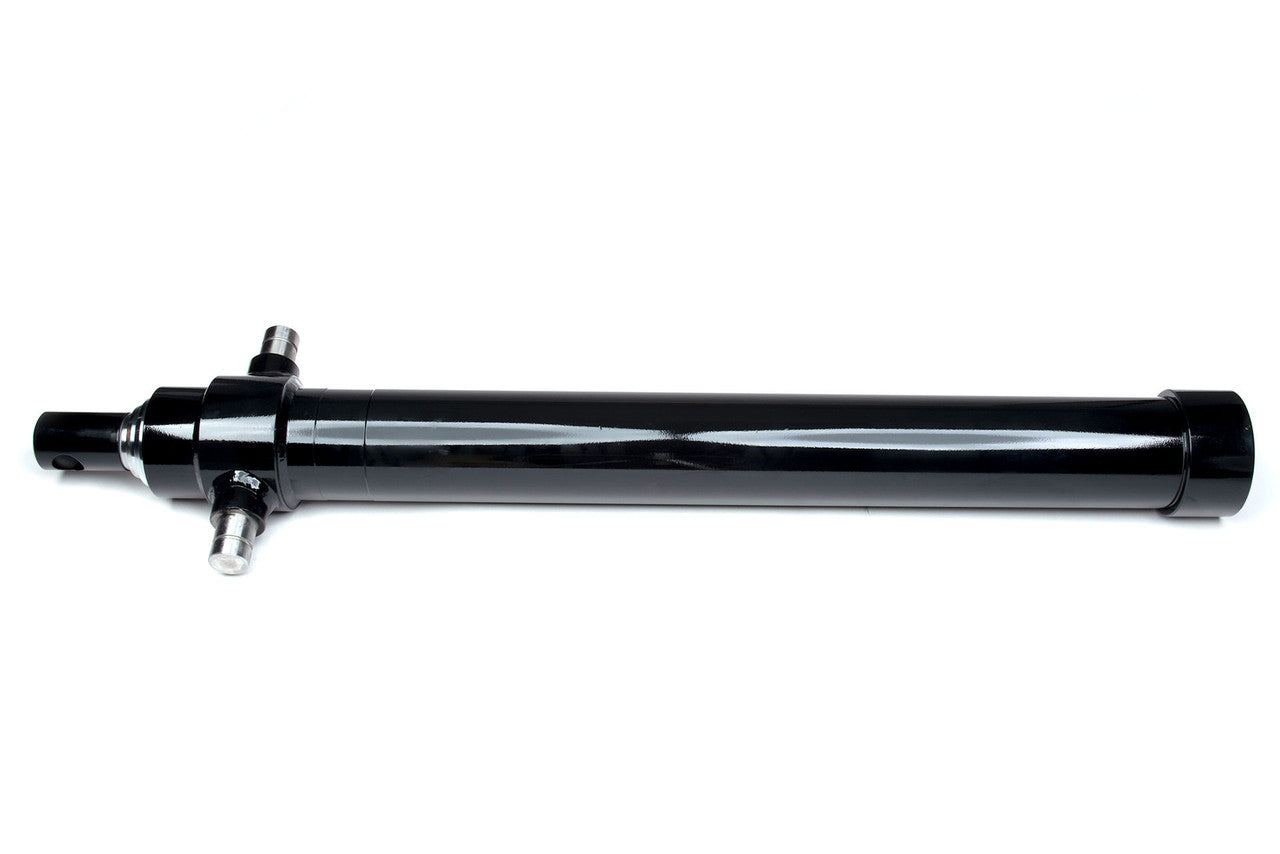

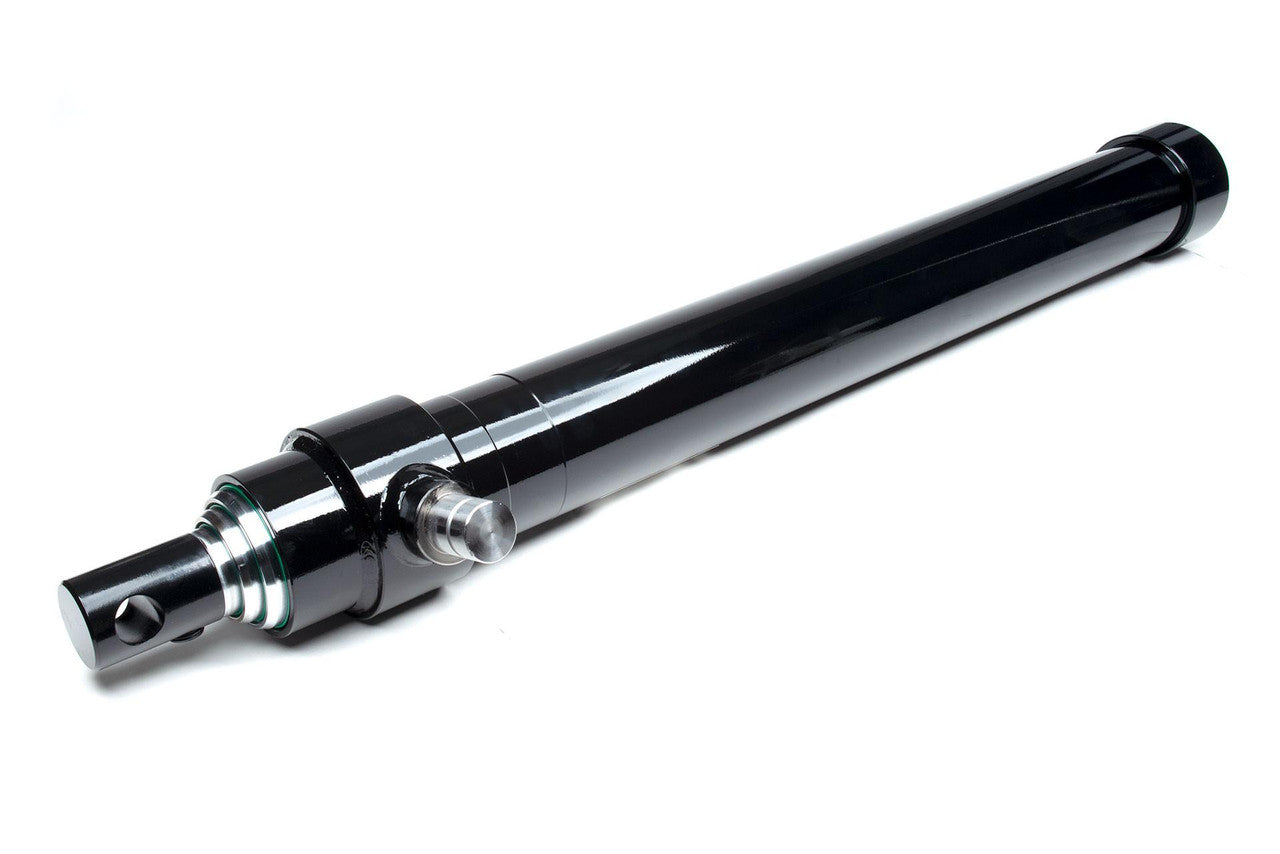

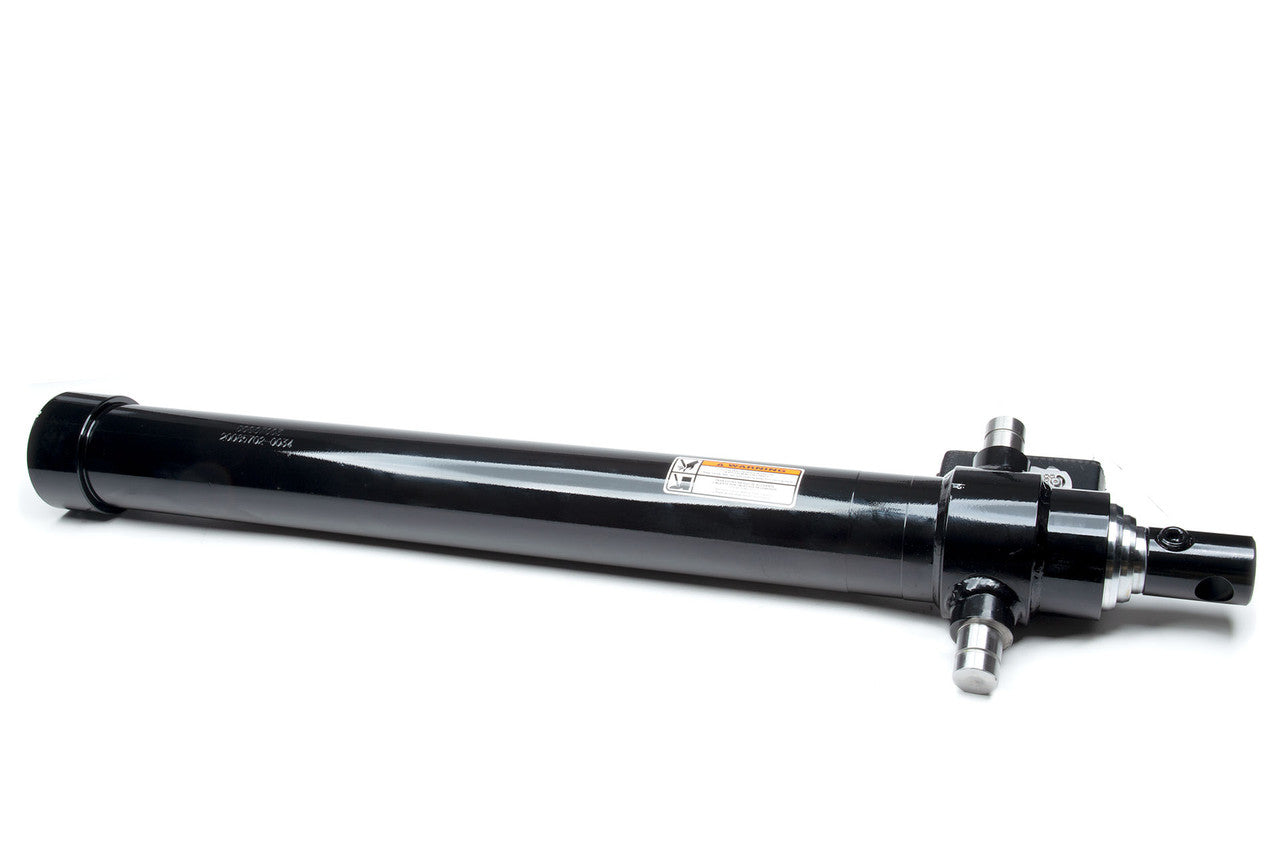

7 Ton Single Acting Hydraulic Telescopic Cylinder 90 Stroke Hydraulic Telescopic Cylinder Plunger Diameter-Hydraulic Cylinders for Dump Beds or Trailers

MODEL	STROKE	A	B	C	D	E	F	G	H	L	kgs
12 TONS
HTC-07843	78”	34.75”	4.4”	2”	1.063”	2.25”	1.5”	7.5”	1.5”	7”	48
HTC-09043	90”	38.75”	4.4”	2”	1.063”	2.25”	1.5”	7.5”	1.5”	7”	52
HTC-10843	108”	44.75”	4.4”	2”	1.063”	2.25”	1.5”	7.5”	1.5”	7”	59
HTC-12043	120”	48.75”	4.4”	2”	1.063”	2.25”	1.5”	7.5”	1.5”	7”	64
HTC-14443	144”	56.78”	4.4”	2”	1.063”	2.25”	1.5”	7.5”	1.5”	7”	74



12 Ton Telescopic Kit Includes:

Hydraulic Power Unit (HPU)



Not only we can provide you with telescopic cylinders, but also many related accessories such as :

H-Frame

Hydraulic Hose Assembly

Hydraulic Fittings

Bridon Load Control

Safety Arm and Safety Arm Cup

Safety Arm Storage Arm Bracket

Hinge, Battery Cables, and Rubber Strap

Telescoping Cylinder



Zhongxin Introduction :

Zhongxin was esablished in 2008 with 70 empolyees and  mainly for hydraulic cylinder production .We 've regularly exported to America, Australia and European countries.



Manufacturing Capacity :

Bore diameters up to 1,000mm

Strokes up to 18,000mm

Pressures up to 70Mpa



Quality Process:

Our manufacturing operations are certified to ISO9001&TS16949

Process and quality maintained through continual auditing



WHY US?

15+ YEAR MANUFACTURING EXPERIENCE

RICH EXPERIENCE IN THE AFTERMARKET&OEM MARKET

1 YEAR FULL WARRANTY

One STOP HYDRAULIC SUPPLIER

FACTORY DIRECT SAVINGS

CUSTOMIZED SERVICE AVAILABLE

DESIGN SERVICE AVAILABLE

SAMPLE SERVICE

SERVE OVER 100+ CUSTOMERS FROM 20+ COUNTRIES





FAQ:

1.What kind of products do you sell?

We specialize in hydraulic cylinders and cylinder components.



2.What are Your Lead times for standard Cylinders?

Generally ,It will be longer for the 1st order, because we need to issue all the set production drawings ,and some details need to double confirm. it is about 40-45 days .

For 2nd and following order, It is about 30-35 days after the deposit received.We can discuss if some special status.



3.Do you Provide technical Assistance?

Yishui Zhongxin Machinery Co.,ltd is supported by a team of dedicated and experienced hydraulic design engineers with years of knowledge in the working of hydraulic cylinders.



4.Warranty?

Generally,Zhongxin Machinery will replace or repair defective articles for free Within 1 years from time of the delivery.

This warranty doesn’t cover damages caused by the use of defective articles,worn out articles,wrong use of the

articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious tampering of articles.

Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.

Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.

Warranty Procedures

1,Description of failure

2,Cylinder model and manufacturing date as laser engraved on all cylinders

3,Invoice Number and Date



5,Seals

NOK(Japan),Hallite(UK),TRELLEBORG(Sweden),ASTON(Italy),Kaden(Italy),or as your requirements
