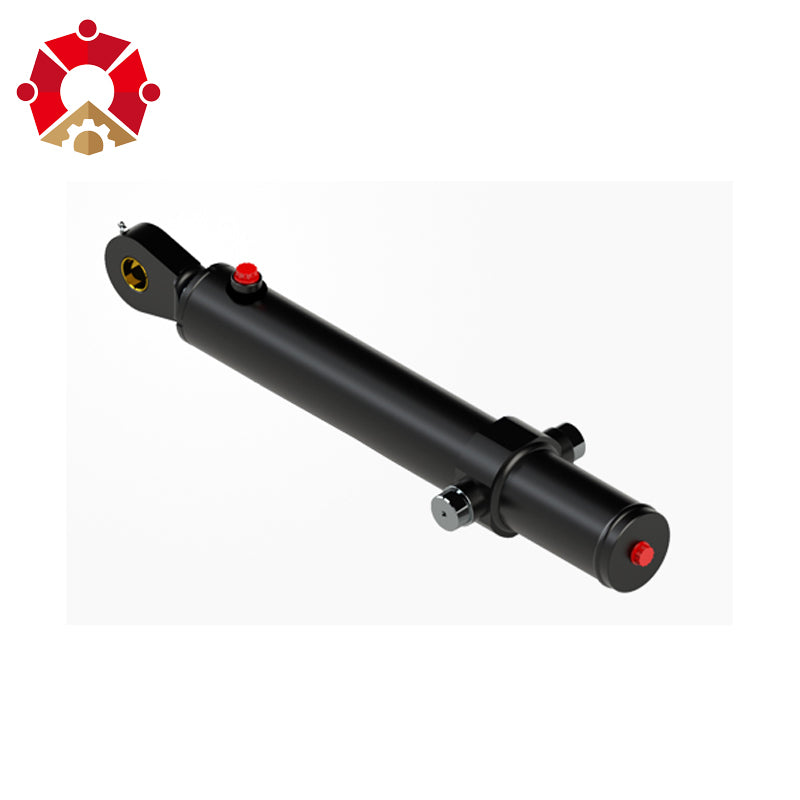

Cylinder: Welded, Cross Tube, 2.5" Bore, 10" Stroke, 1.5" Rod, ORB, 1" Pin Hydraulic Ram Cylinder

Name: Cylinder: Welded, Cross Tube, 2.5" Bore, 10" Stroke, 1.5" Rod, ORB, 1" Pin Hydraulic Ram Cylinder
Brand: zxinhydraulic
Availability: InStock

$0.00 USD

Sale Sold out

Taxes included.

Double Acting Custom Welded Hydraulic Cylinders Bore sizes from 1" to 8" Working pressures up to 10000 PSI

Product Description

Features:
* 2T series: 2500PSI Rated pressure, 4000PSI testing pressure.
* 3T series: 3000PSI Rated pressure, 6000PSI testing pressure.
* Widely used in Agricultural machinery and other similar machines.
* Imported world famous brands and Chinese top brands sealing system.
* High quality Cold Drawn steel tube, with good rigidity.
* CNC Rolled tube inner surface, with roughness of 0.2~0.4um.
* Superior strength chrome-plated rod, anticorrosion for a long life.
* High grade Ductile Iron bar directly machined Gland and Piston, with high strength.
* High tensile strength tie rods with rolled threads for durability.
* Dual base-plate oil ports
* 100% factory tested under at least 1.5 times of the rated pressure.

Materials:
* GLAND - High grade ductile iron
* TUBE - High quality Steel tube, precision skived and rolled
* TUBE SEAL - O-Ring with anti-extrusion backup washer
* TIE ROD - High tensile hardened steel
* ROD - Chrome Plated C1045 Steel
* ROD CLEVIS - High grade Ductile iron
* END CAP - High grade Ductile iron
* PISTON - High grade ductile iron, precision machined
* PISTON SEAL - CROWN SEAL or Glass fifilled nylon wear ring
* ROD WIPER - Metal encased nitrile rubber
* ROD SEAL - Urethane
* PORTS - NPT (SAE optional)
* COLOR - Red, Gloss black, or as required

2"BORE	2.5"BORE	3"BORE	3.5"BORE	4"BORE	5"BORE
2004	2504	3004	3504	4004	5004
2006	2506	3006	3506	4006	5006
2008	2508	3008	3508	4008	5008
2010	2510	3010	3510	4010	5010
2012	2512	3012	3512	4012	5012
2014	2514	3014	3514	4014	5014
2016	2516	3016	3516	4016	5016
2018	2518	3018	3518	4018	5018
2020	2520	3020	3520	4020	5020
2024	2524	3024	3524	4024	5024
2030	2530	3030	3530	4030	5030
2036	2536	3036	3536	4036	5036
2040	2540	3040	3540	4040	5040
2048	2548	3048	3548	4048	5048

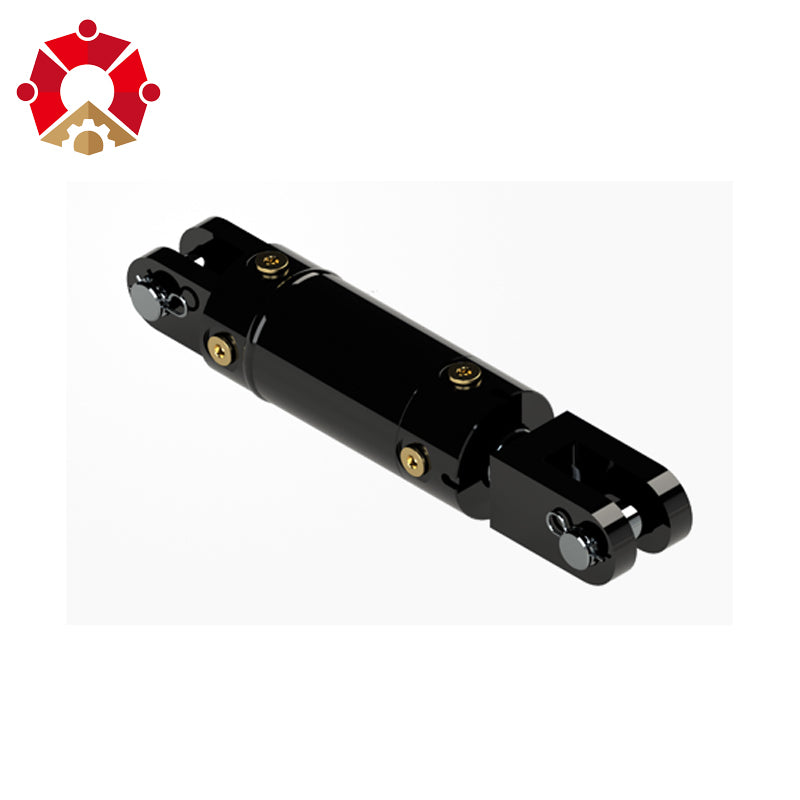

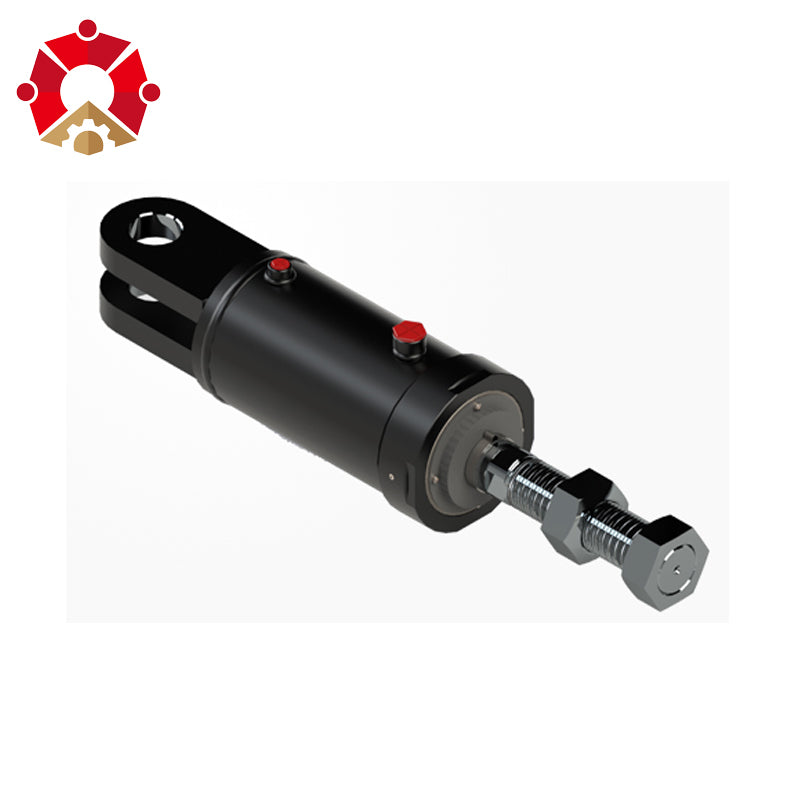

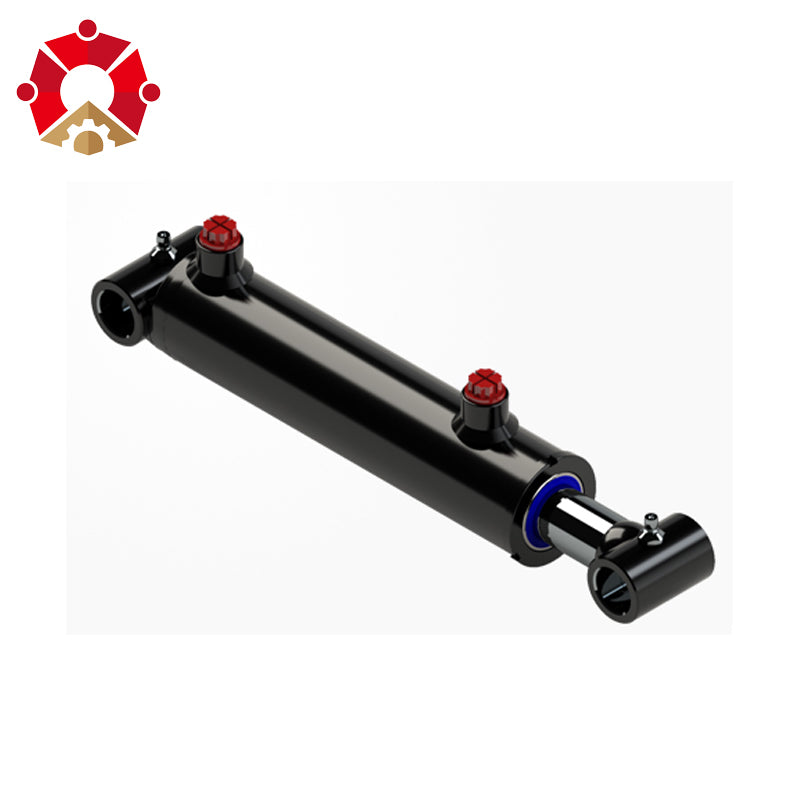

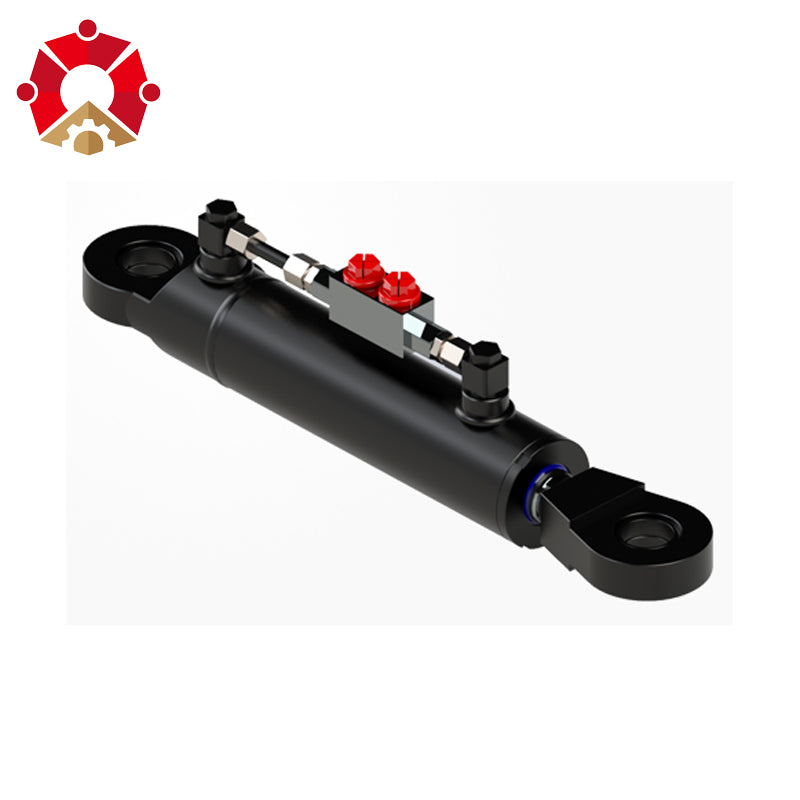

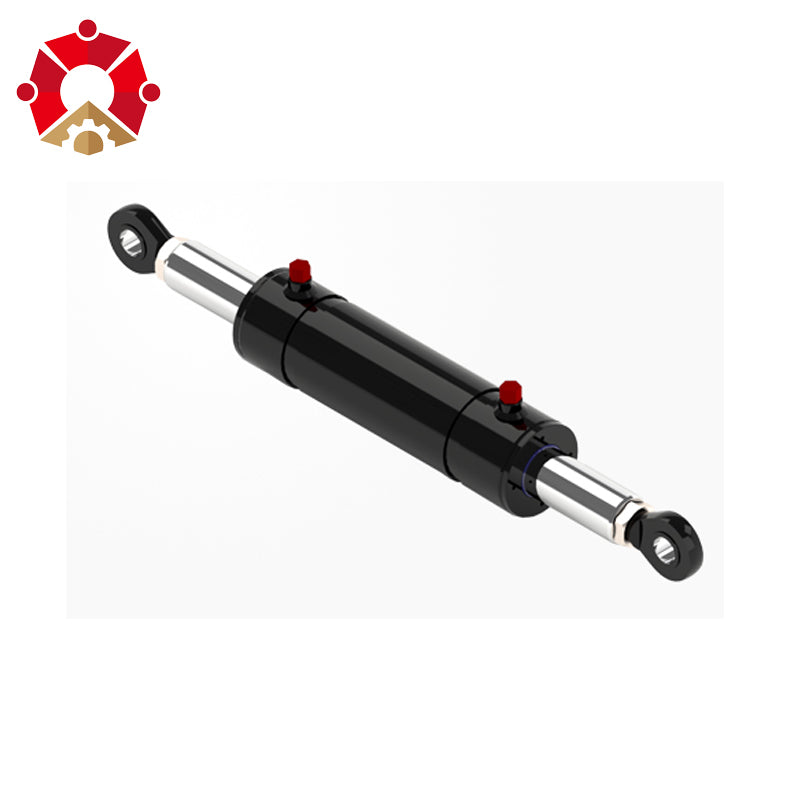

Detailed Images

Packing&Shipping

Packing:Packed by PP bag and then in wooden box,also packed according to customer' request.

Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.

Company Introduction

Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.

Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:

Materials Handling Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front End Loaders.

Agricultural Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses, Slashers & Mowers.

Waste Management Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.

Transport Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.

Custom as your special requirements

Inspection Equipment

FAQ

1.What kind of products do you sell?

We specialize in hydraulic cylinders and cylinder components.

2.What are Your Lead times for standard Cylinders?

Generally ,It will be longer for the 1st order, because we need to issue all the set production drawings ,and some details need to double confirm. it is about 40-45 days .

For 2nd and following order, It is about 30-35 days after the deposit received.We can discuss if some special status.

3.Do you Provide technical Assistance?

Yishui Zhongxin Machinery Co.,ltd is supported by a team of dedicated and experienced hydraulic design engineers with years of knowledge in the working of hydraulic cylinders.

4.Warantty?

Generally,Zhongxin Machinery will replace or repair defective articles for free Within 1 years from time of the delivery.
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.

Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.

Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date

5,Seals

NOK(Japan),Hallite(UK),TRELLEBORG(Sweden),ASTON(Italy),Kaden(Italy) , or As your special requirements
