Double Acting Hydraulic Cylinder With Industrial Ball Joints (different variants)
Double Acting Hydraulic Cylinder With Industrial Ball Joints (different variants)
-

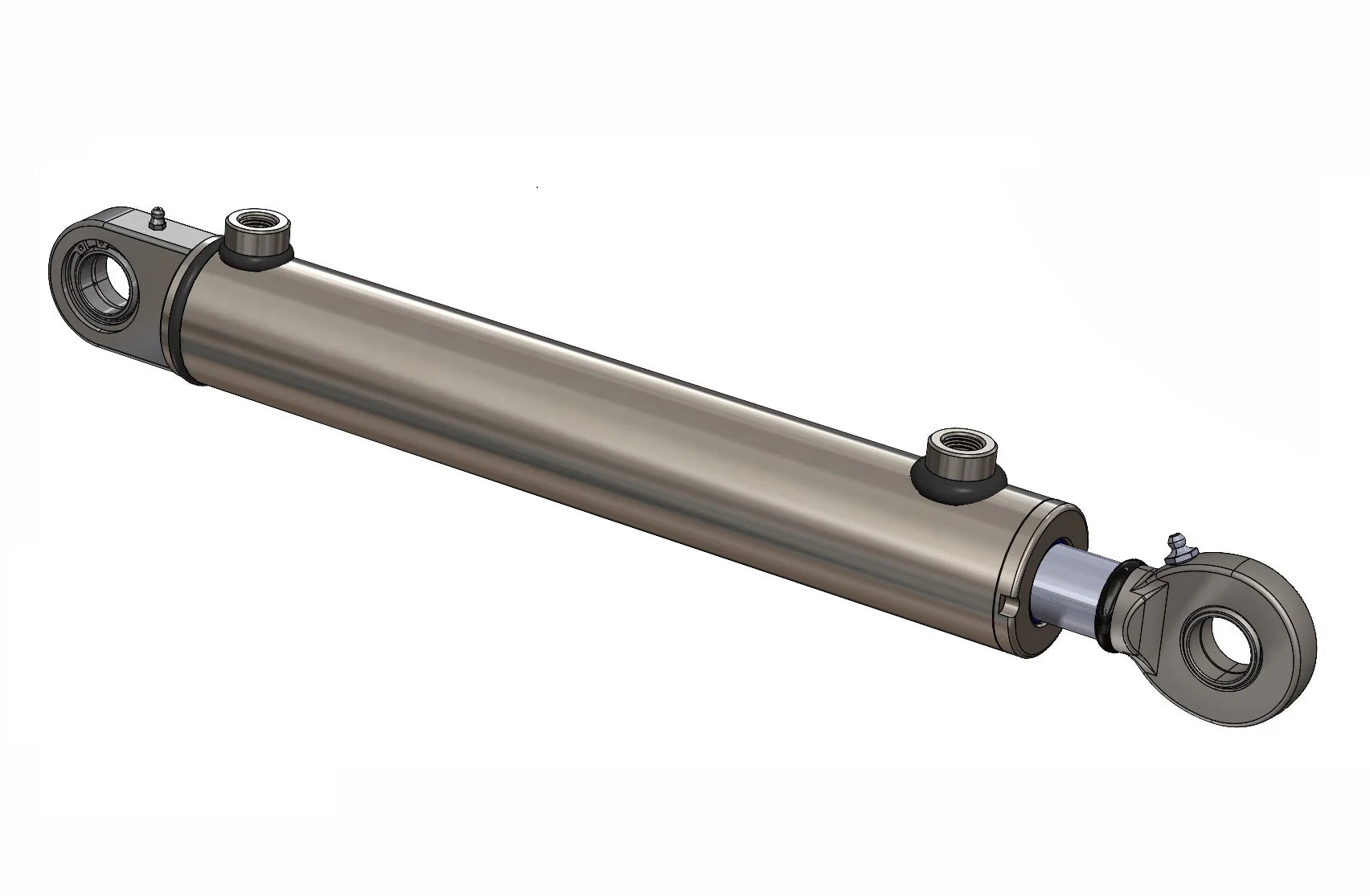

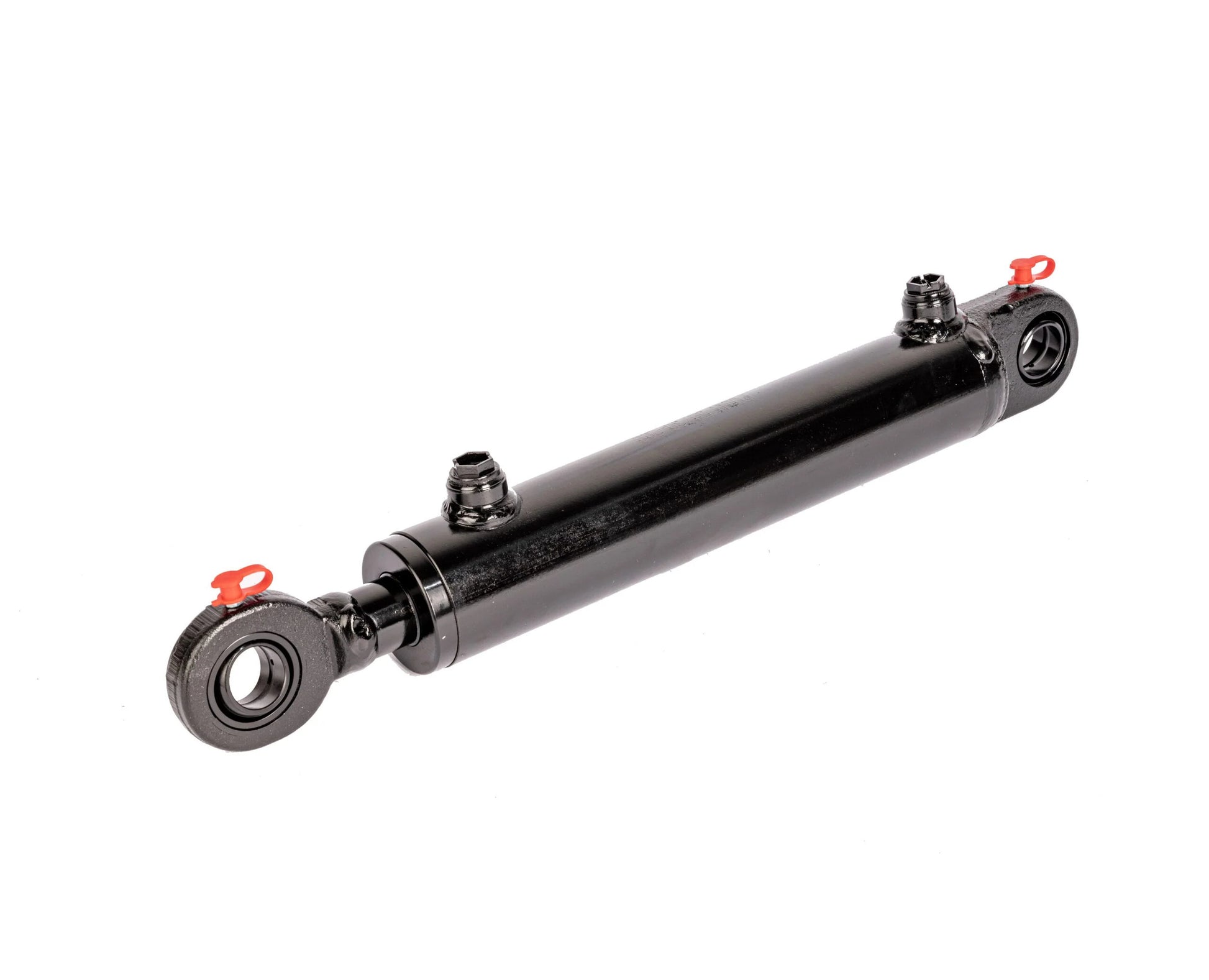

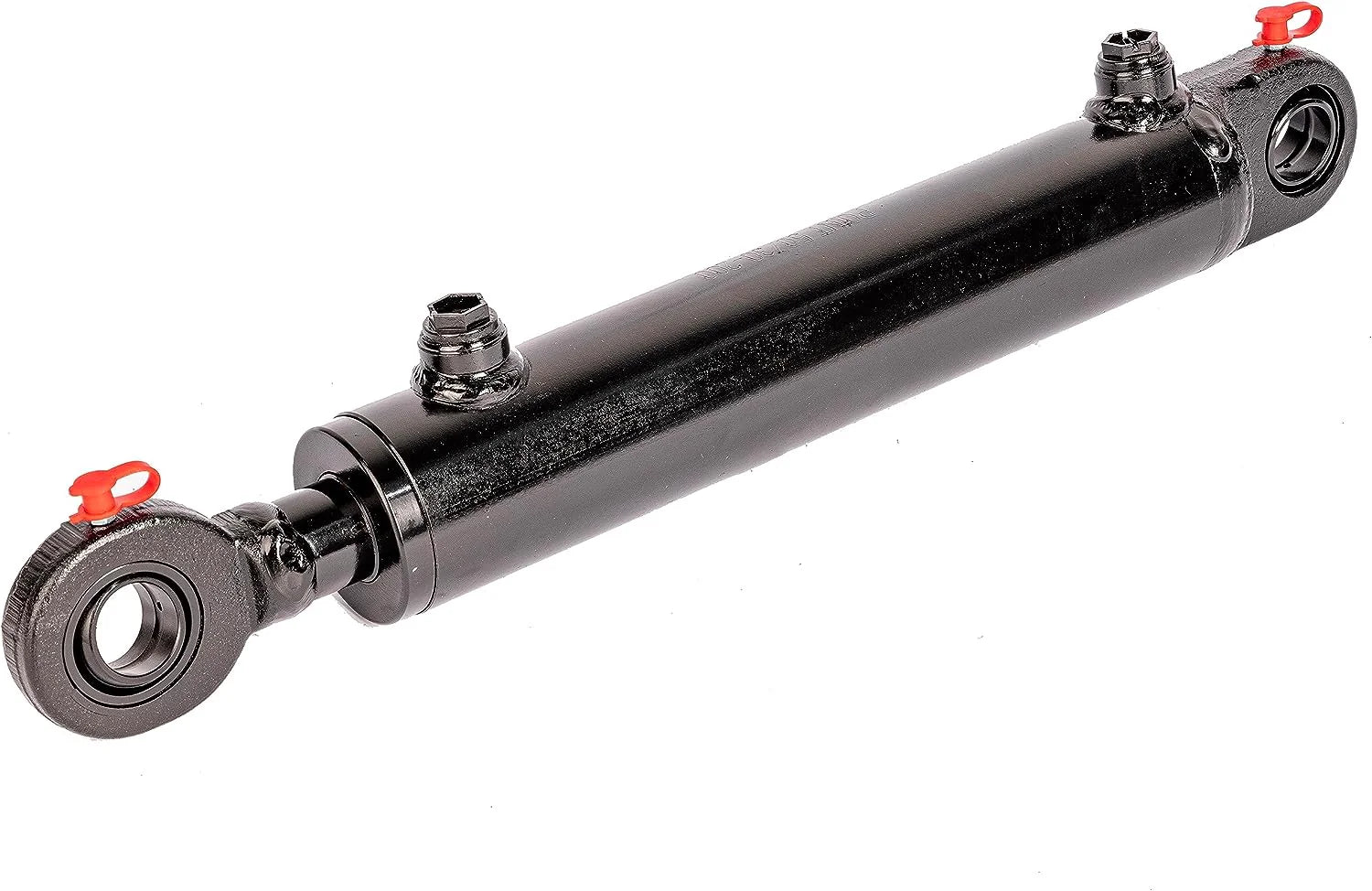

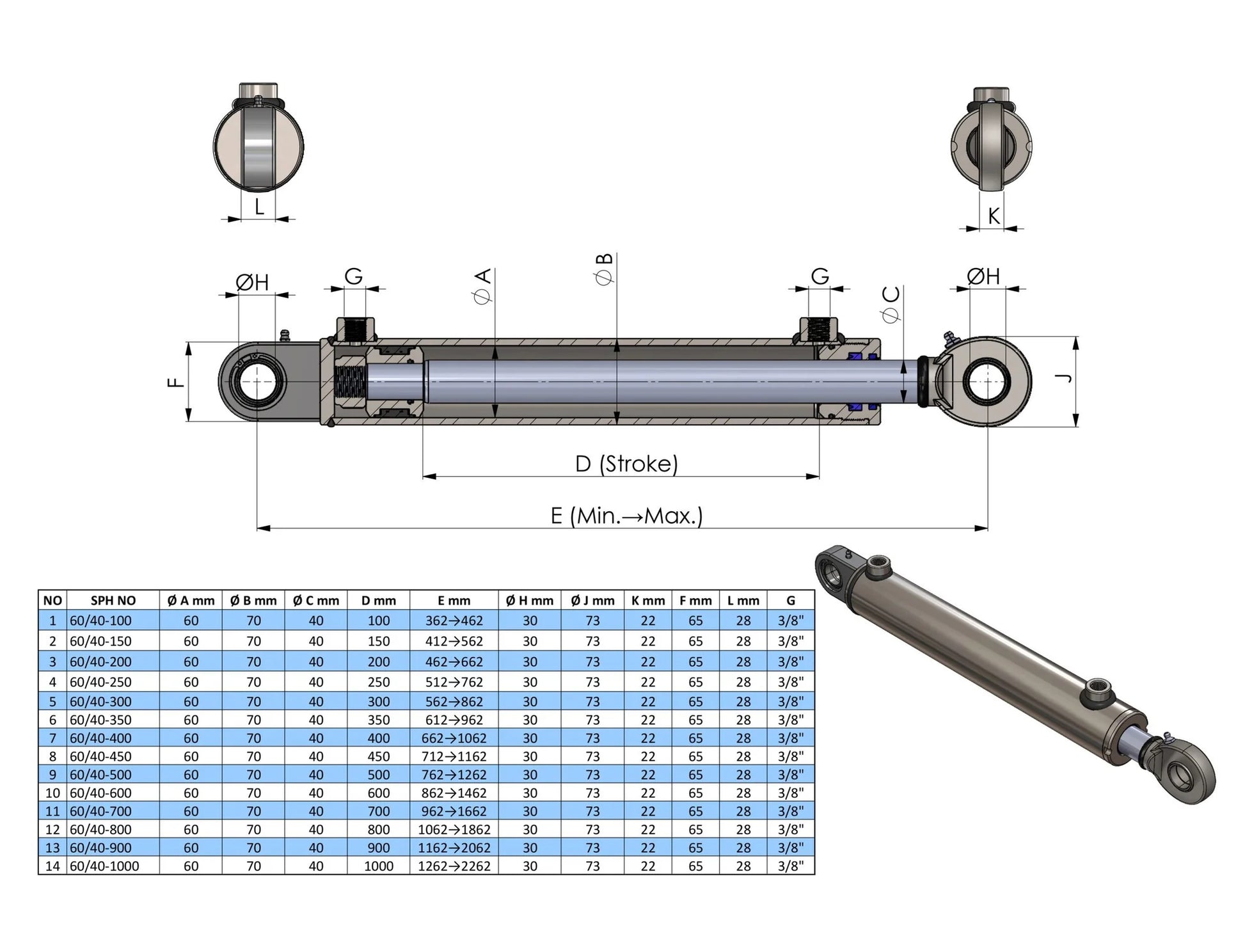

Hydraulic cylinder double-acting with industrial ball joints. 3/8" ports, piston and rod diameter selectable! Stroke selectable!
Larger quantities available on request.
Special features:
- Fully assembled
- Unique innovative design
- Special locking ring on the piston
Advantages:
- Immediately ready for use
- Long service life
- High level of operational safety
Properties:
- All types of fastening possible
- Maximum radial load: 10% of the axial force
- Maximum operating pressure depends on the maximum buckling load
- All cylinders are painted black. This can show signs of scratches and is only used to protect against corrosion during storage or transport. Scratches are therefore not a defect or a reason for complaint
Technical information:
- Interchangeable with other brands
- Medium: mineral oil, HLP ISO VG 32 to ISO VG 46
- Cleanliness of the medium: ISO 4406 22/20/ 17 or NAS 9
- Important note! Protect welding spatter!
Packing&Shipping
Packing:Packed by PP bag and then in wooden box,also packed according to customer' request.
Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.
Company Introduction
Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.
Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:
Materials Handling Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front End Loaders.
Agricultural Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses, Slashers & Mowers.
Waste Management Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements
Inspection Equipment
FAQ
1.What kind of products do you sell?
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
