Hot Sale Canada Dump Trailer Telescopic Hydraulic Cylinder 12 Ton 90'' Stroke

Product Description

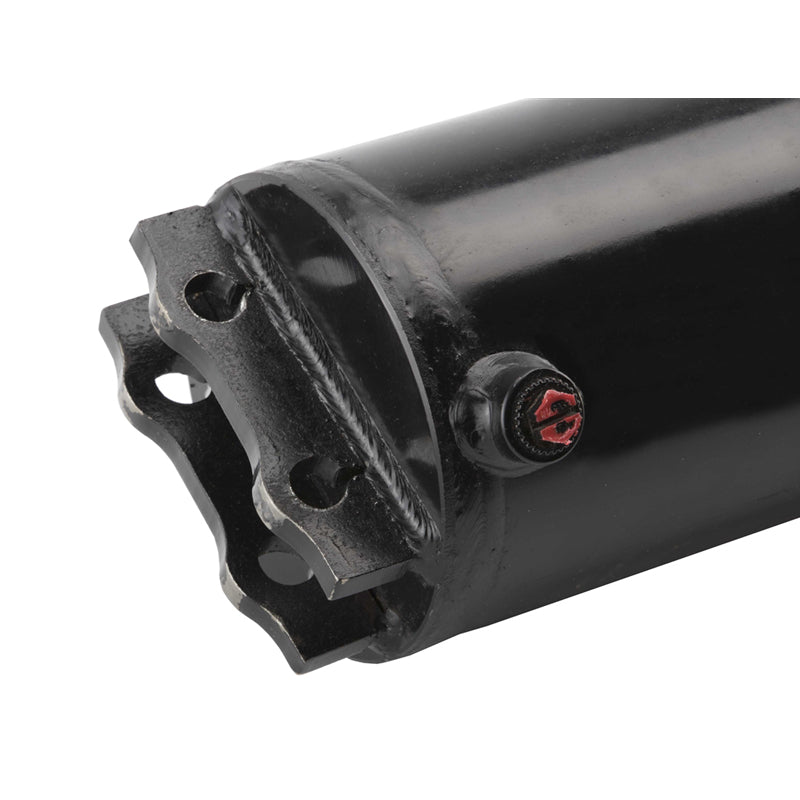

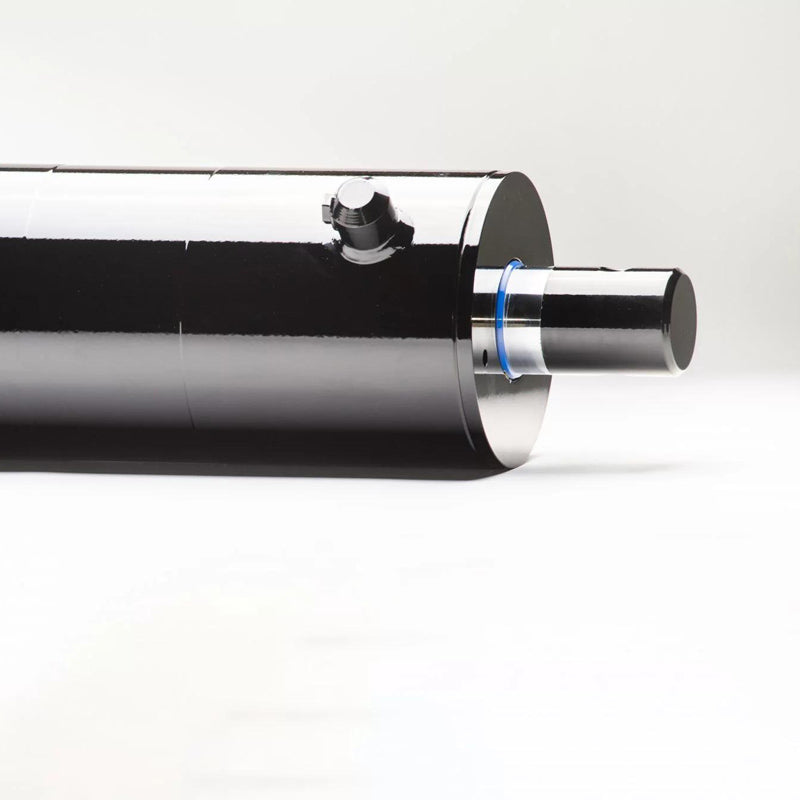

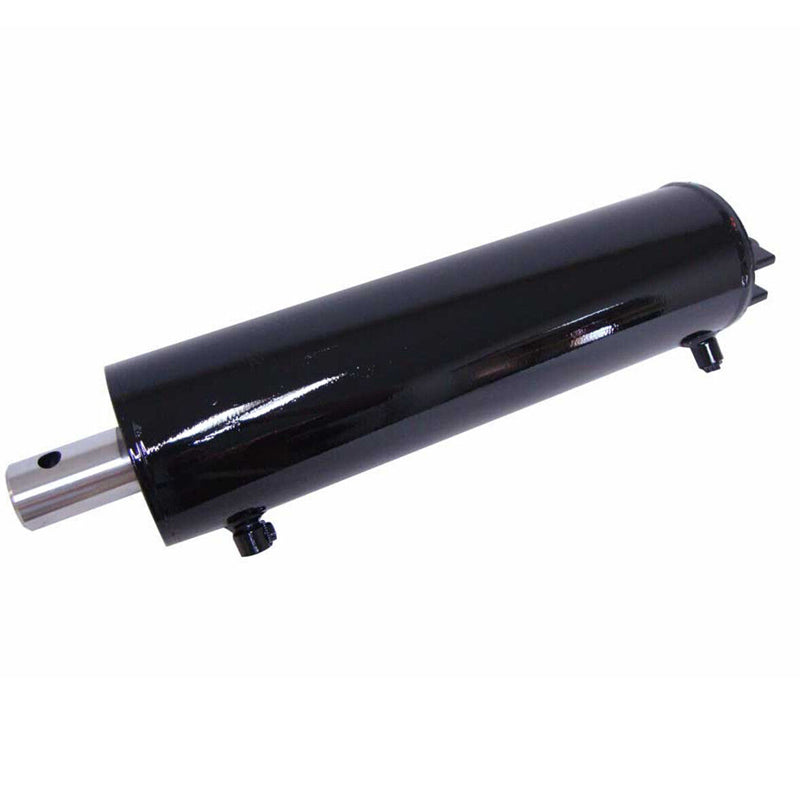

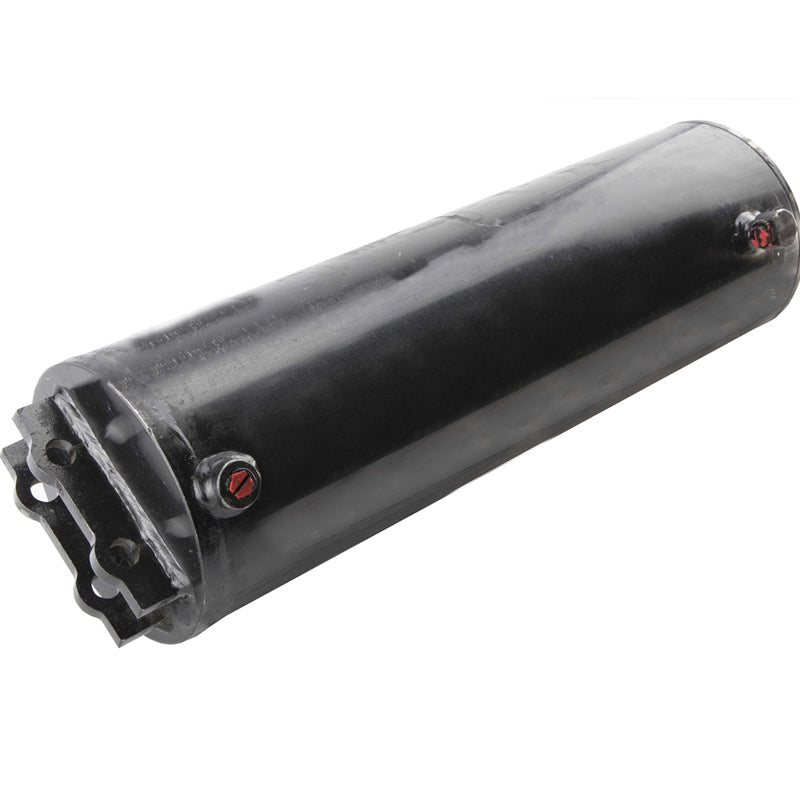

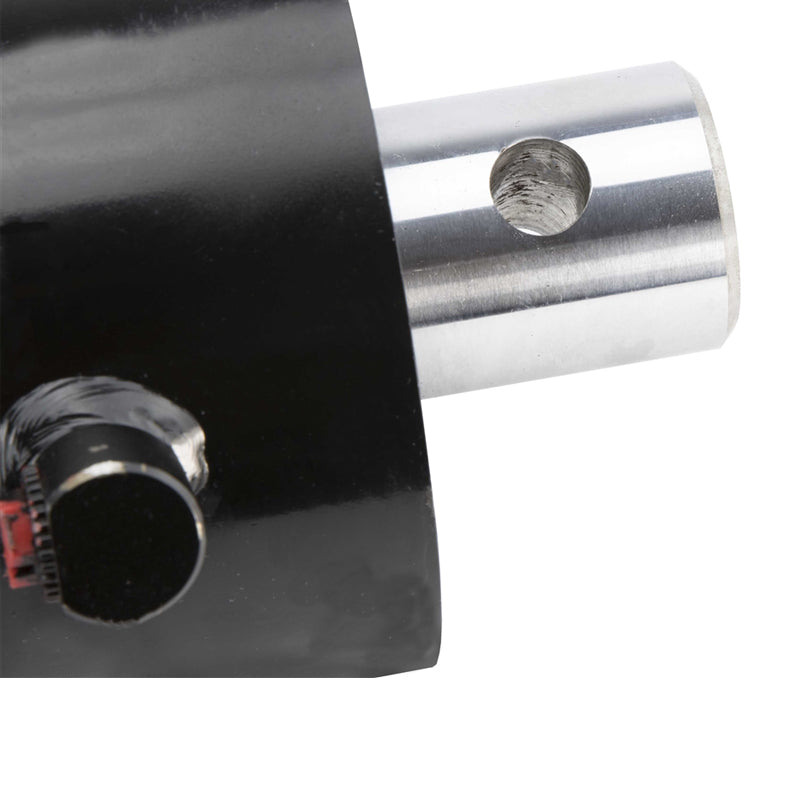

This 6-inch bore × 15.75-inch stroke dump hoist hydraulic cylinder is specially designed for dump trucks, tippers, and other lifting equipment. Built to deliver powerful and stable lifting performance, it is ideal for medium to heavy-duty applications.

Technical Specifications

Bore :6 in                                  Outer Dia. (⌀) :6.61 in

Stroke : 15.75 in                      Rod Dia. (⌀) : 2 in

Port Size : SAE 6                       Pin Dia. (⌀) : 0.63 in

Extended :39.25 in                  Retracted :23.5 in

Overall length :25.47 in          Pressure : 3500 PSI

Column Load : 83,200 LBs      Design : Welded

Rod Type :Chrome Plated       Rod End : Pin Hole

Action : Double Acting

Application

Ø Dump trucks

Ø Dump trailers

Ø Agricultural tipping systems

Ø Small to medium lifting platforms

All cylinders are manufactured by Zhongxin Hydraulic with strict quality control and full testing before shipment.

Product Features

Ø High-strength steel construction, resistant to bending and fatigue

Ø Honed & chromed rod for excellent sealing and corrosion protection

Ø Precision welding using Panasonic machines

Ø 100% pressure tested before delivery

Ø Custom mounting and ports available on request

Product Features

High-strength steel construction, resistant to bending and fatigue

Honed & chromed rod for excellent sealing and corrosion protection

Precision welding using Panasonic machines

100% pressure tested before delivery

Custom mounting and ports available on request
