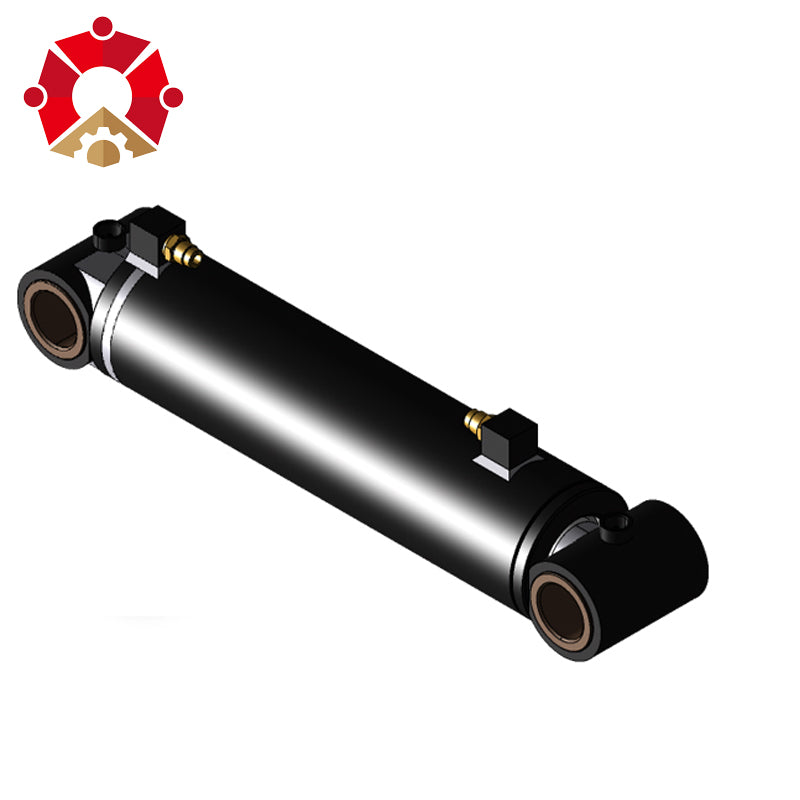

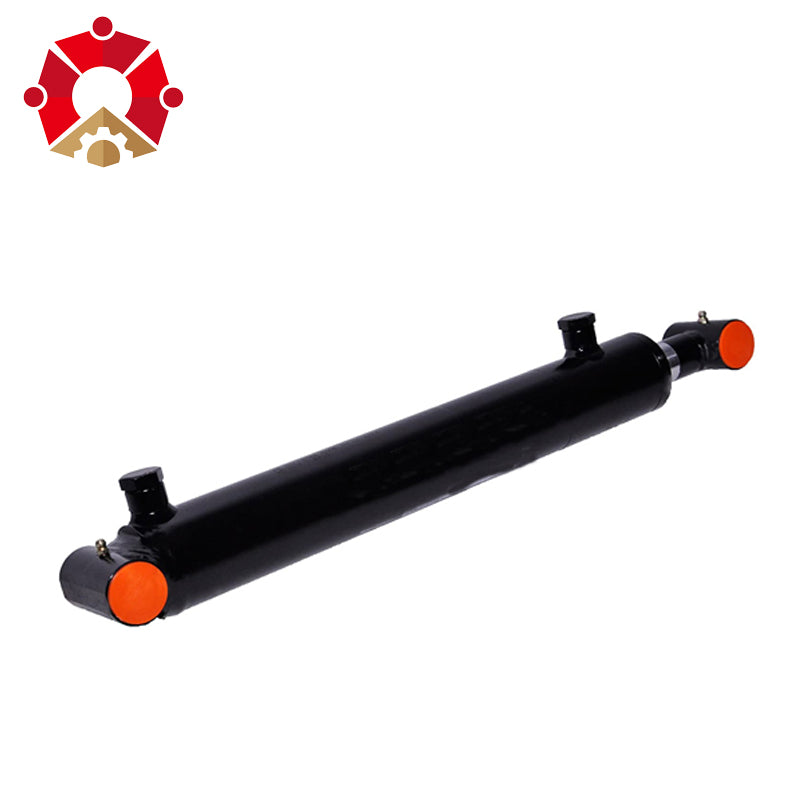

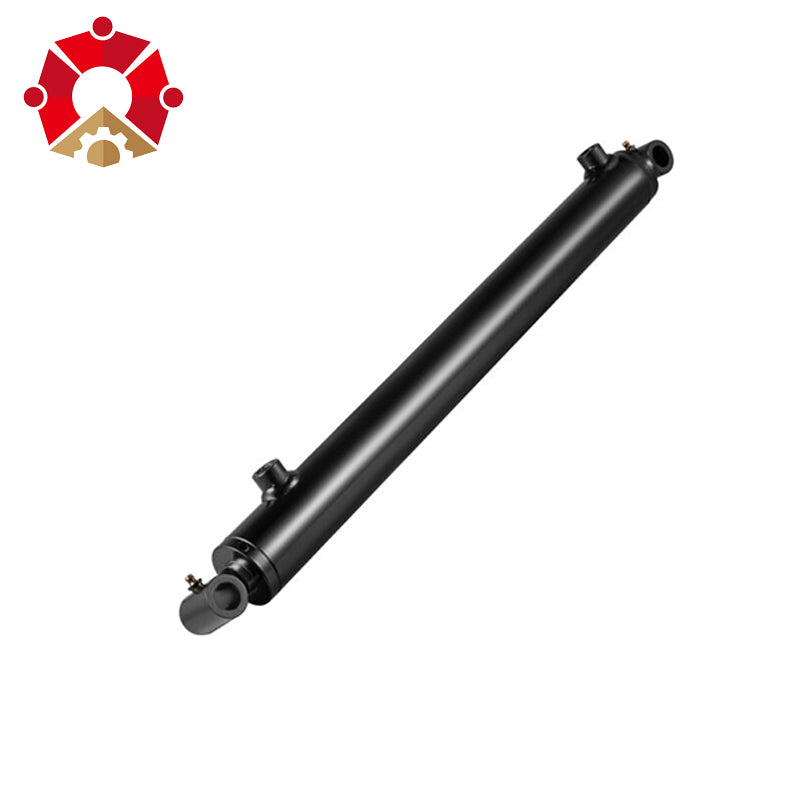

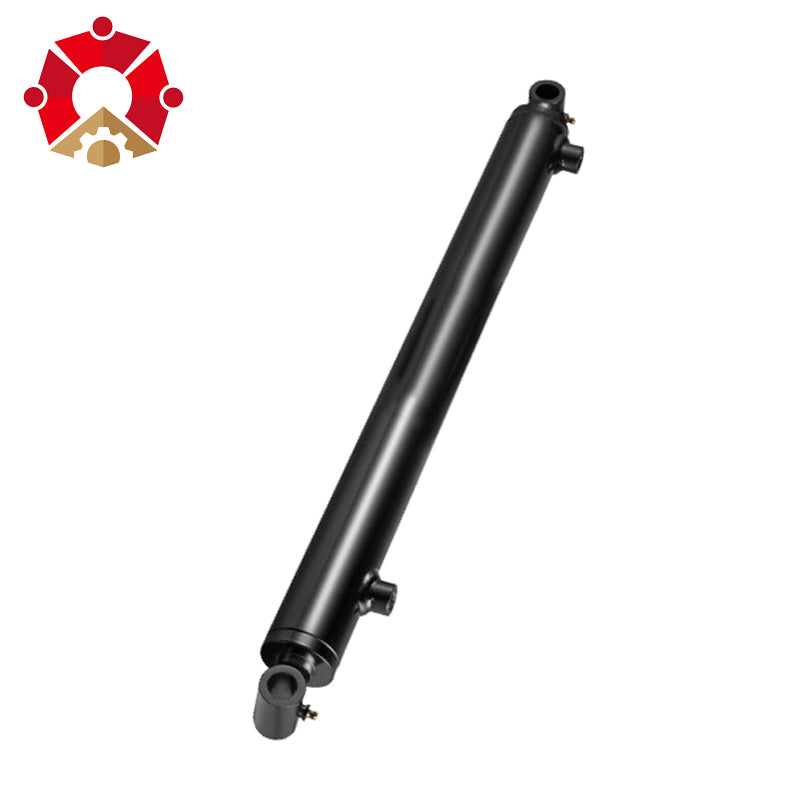

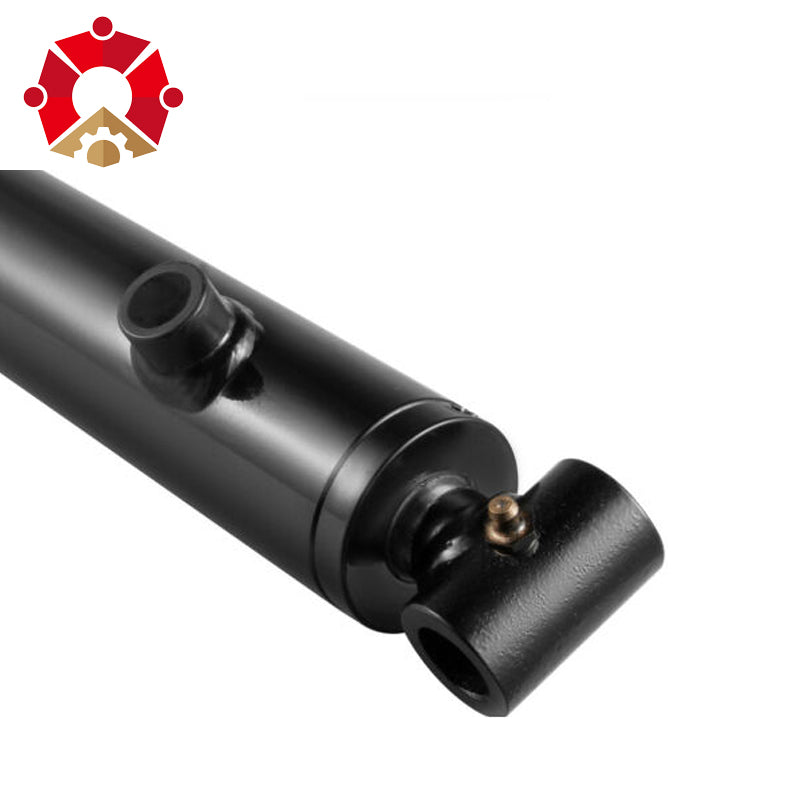

We manufacture cylinders for all applications

· Harvester(Sugar cane, Coffee and Grain)

· Sprayers

· Planters

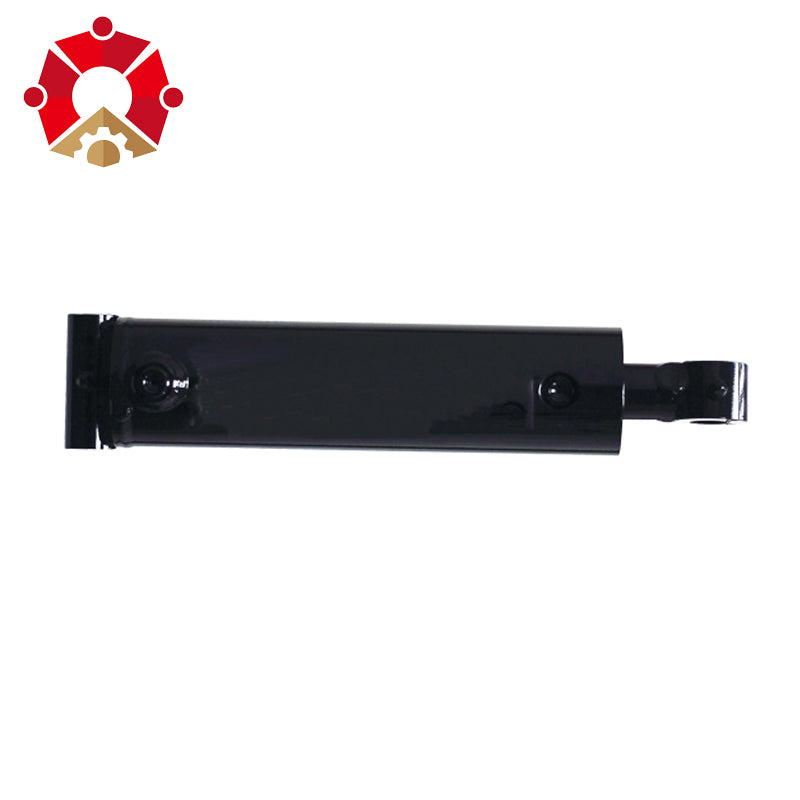

· Tractor ( Steering and attachment cylinders) and Tractor implements

· Sugar cane transporters

Salient Features

· Robust designs for severe usage conditions

· High strength material for Tubes, Rods, hydraulic pipes for tough applications

· Burnishing on tube ID for durable seal life

· Finer Rod surface finish up to 0.2 Ra for durable seal life

· High corrosion resistance for rod plating up to 72 hrs. (NSS).

· Robotic welding for tube-flange

· Smooth cushioning/dampening on both ends of cylinder stroke in some cylinders

Special cylinders of Aluminum( Auto tracker), Transducers, Magnetic seals and with inbuilt

PRODUCT CONFIGURATION

Company Introduction

Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.

Product Overview

FE type

FC Type

Parker Type

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

Name	Telescopic hydraulic cylinder used for Dump truck , trailer and tipper
total stroke	800mm-3000mm
multiple stage	can be 2.3 4.5 stages
tube	20#,27SiMn , precise cold drawn,chrome outside, BK+S
rod	hard chrome plated,CK45
Body Material	Steel
Core Components	PLC, Bearing
Structure	Piston Cylinder
Weight	180-200
Warranty of core components	One year after arrive at destination
Packing	wooden case ,wooden pallets (free of fumigation)
Mainly exported Countries	American ,Mexico ,Canada ,Brazil, Australia ,Italy, Ukraine,Malaysia and many other countries

 SALES AND SERVICE NETWORK

Our Advanced Equipment

We have more than 200 sets of advanced processing and test equipment.
Including CNC lathe machines, deep hole boring machines, roller burnish machines, ultrasonic cleaning machines, automatic
polishing machine, automatic painting line,Robot welding equipment, performance test bed, tensile testing machine etc.

We have more than 20 years working experience to product hydraulic cylinder.

Every cylinder be tested strictly

12 Month warranty period

Not a single details is to be omitted.

All tubes for multi-stages cylinders are hard chrome plated by ourself.

Our Inspection

From steel bar, steel pipe to seals, each kind of raw material be tested strictly.

Every process step, we have inspection records which can be traceback.

Each cylinders must be tested before loading .

Our Certificate

We passed ISO9001 and TS16949 Quality system certification since 2005 respectively

Our main export countries

With reliable quality and competitive price, our products are widely accpeted by many China automobile manufacturers, and are exported to American ,Mexico , Canada ,Brazil , Australia ,Italy , Ukraine ,Malaysia and many other countries.

SIMILAR PRODUCTS

FAQ

Q1: Is your design reasonable?

A :We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect
performance.

Q2: How to choose which model hydraulic cylinder to buy?

A: Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length,
vehicle body length, etc. We can determine the most suitable model for you.

Q3: How long it will take from ordering to delivering?

A: It depends on the ordering quantity. Generally we will take 15-30days. If there are any changes, we will inform you in time.
