Hydraulic Cylinders for Snow Plows 1.5" X 6" Stroke Replacement Snow Plow Cylinder Fits Western Plow
Hydraulic Cylinders for Snow Plows 1.5" X 6" Stroke Replacement Snow Plow Cylinder Fits Western Plow
Regular price
$226.00 USD
Regular price
Sale price
$226.00 USD
Unit price
per
Taxes included.

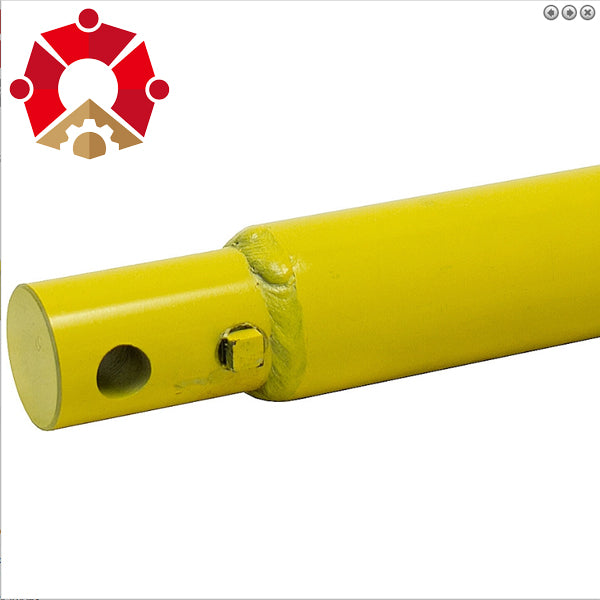

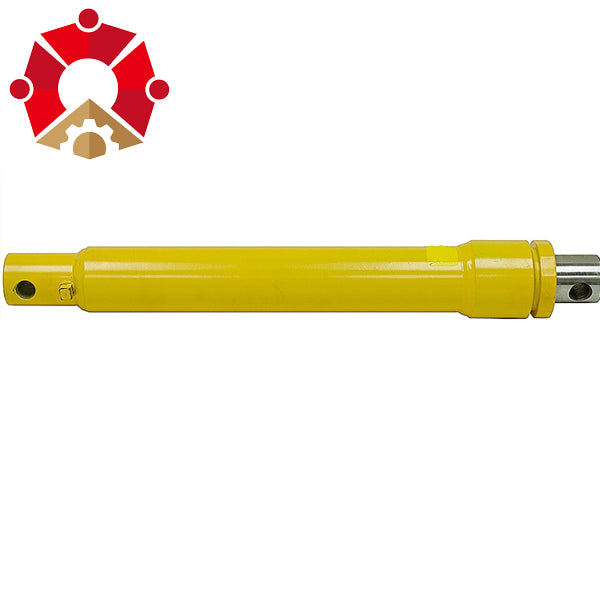

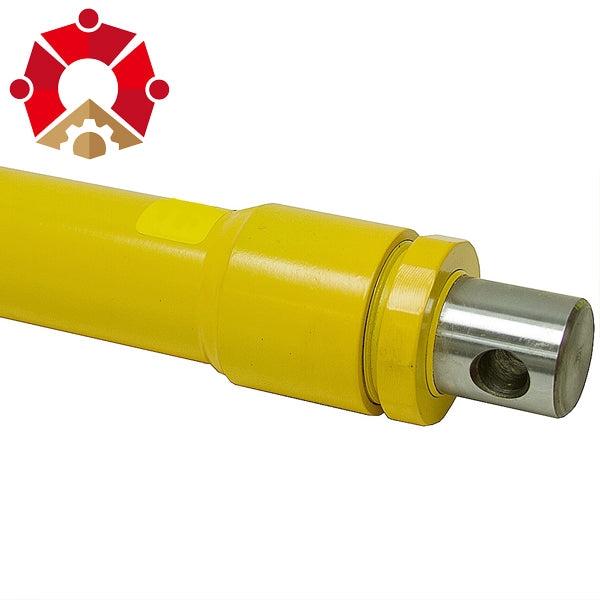

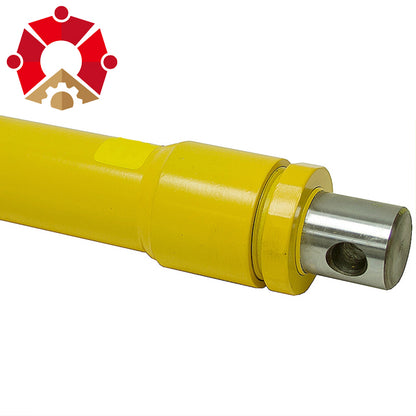

1.125" x 6" x 1.125" SA HYD SNOW PLOW CYLINDER
New, single-acting displacement cylinder. Made for use in snow plow applications. Port orientation in-line with pin.
|
SPECIFICATIONS |
|
|
· Single Acting · Bore x Stroke 1-1/8" x 6" · Gland O.D. 2-3/8" · Pressure 2500 PSI max. · Rod Dia. 1-1/8" |
· Cylinder Tube I.D. 1-1/2" · Port 1/4" NPT · Retracted Length 12-3/8" · Shpg. 11 lbs. |
|
END MOUNTINGS |
|
|
· Rod End Thru-Hole · Width 1-1/8" · Pin Hole 5/8" |
· Base End Thru-Hole · Width 1-5/8" · Pin Hole 5/8" |
Product Overview
FE type
FC Type
Parker Type
FEATURES AT A GLANCE
SALES AND SERVICE NETWORK
Our Advanced Equipment
We have more than 200 sets of advanced processing and test equipment.
Including CNC lathe machines, deep hole boring machines, roller burnish machines, ultrasonic cleaning machines, automatic
polishing machine, automatic painting line,Robot welding equipment, performance test bed, tensile testing machine etc.
Including CNC lathe machines, deep hole boring machines, roller burnish machines, ultrasonic cleaning machines, automatic
polishing machine, automatic painting line,Robot welding equipment, performance test bed, tensile testing machine etc.
We have more than 20 years working experience to product hydraulic cylinder.
Every cylinder be tested strictly
12 Month warranty period
Not a single details is to be omitted.
All tubes for multi-stages cylinders are hard chrome plated by ourself.
Our Inspection
From steel bar, steel pipe to seals, each kind of raw material be tested strictly.
Every process step, we have inspection records which can be traceback.
Each cylinders must be tested before loading .
Our Certificate
We passed ISO9001 and TS16949 Quality system certification since 2005 respectively
Our main export countries
With reliable quality and competitive price, our products are widely accpeted by many China automobile manufacturers, and are exported to American ,Mexico , Canada ,Brazil , Australia ,Italy , Ukraine ,Malaysia and many other countries.
SIMILAR PRODUCTS
FAQ
Q1: Is your design reasonable?
A :We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect
performance.
Q2: How to choose which model hydraulic cylinder to buy?
A: Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length,
vehicle body length, etc. We can determine the most suitable model for you.
Q3: How long it will take from ordering to delivering?
A: It depends on the ordering quantity. Generally we will take 15-30days. If there are any changes, we will inform you in time.
A :We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect
performance.
Q2: How to choose which model hydraulic cylinder to buy?
A: Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length,
vehicle body length, etc. We can determine the most suitable model for you.
Q3: How long it will take from ordering to delivering?
A: It depends on the ordering quantity. Generally we will take 15-30days. If there are any changes, we will inform you in time.
