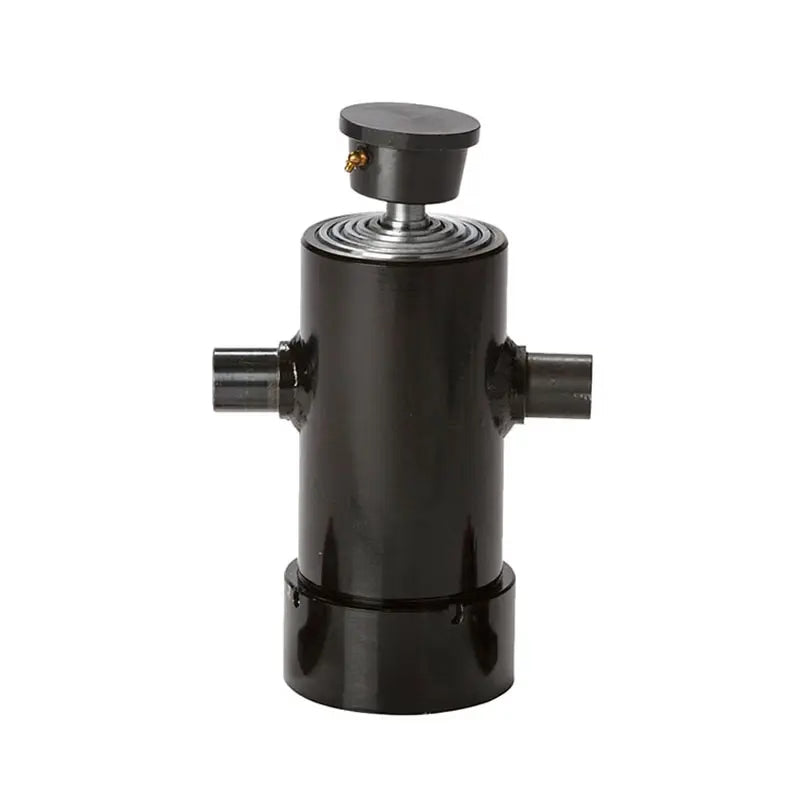

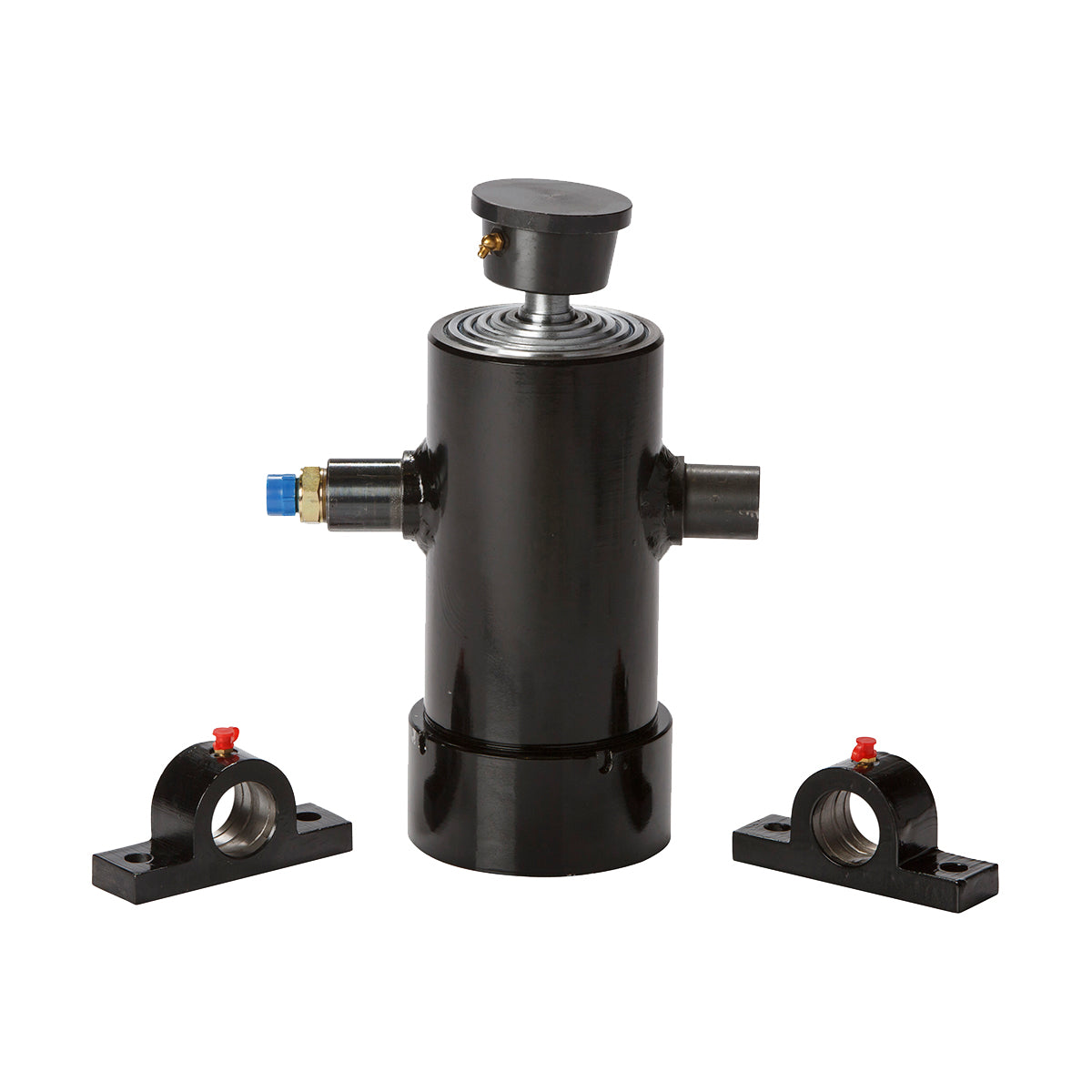

Hydraulic Telescopic Cylinder 6 Stage 1005mm Stroke Underbody Hoist Cylinder
Hydraulic Telescopic Cylinder 6 Stage 1005mm Stroke Underbody Hoist Cylinder
-
Introduction
The 6 Stage 1005mm Stroke Underbody Hoist Hydraulic Cylinder is designed for heavy-duty dump trucks, agricultural trailers, and construction tippers. With its reliable multi-stage telescopic design, it delivers smooth lifting, efficient unloading, and long service life. Built with high-strength steel and advanced sealing technology, this cylinder is your trusted choice for tipping applications worldwide.
Technical Specifications
|
Specification |
Details |
|
Product Name |
6 Stage Underbody Hoist Cylinder |
|
Stroke Length |
1005 mm |
|
Number of Stages |
6 |
|
Bore Sizes |
Customizable |
|
Working Pressure |
Up to300 bar (to be specified) |
|
Mounting Type |
Underbody hoist, tipping trailer use |
|
Applications |
Dump trucks, construction tippers, farm trailers |
Key Features:
Design: 6 stage single-acting telescopic cylinder
Stroke: 1005 mm
Application: Dump trucks, semi-trailers, agricultural trailers
Material: High-strength alloy steel with precision chrome-plated stages
Sealing System: Premium imported seals for excellent leak resistance
Surface Treatment: Painted finish / customized coating availa
Durability: Designed for harsh working conditions, long service life
Warranty: 12 months against manufacturing defects
Applications
l Dump trucks & tipper trailers
l Agricultural trailers (grain, silage, and bulk transport)
l Construction equipment for sand, gravel, and earthmoving
l Mining and heavy transport vehicles
Designed to improve efficiency and reliability in all tipping and unloading operations.
Packing&Shipping
Packing:Packed by PP bag and then in wooden box,also packed according to customer' request.
Shipping:Sample can be shipped by air express or air transportation,bulk can be shipped by sea.
Company Introduction
Yishui Zhongxin Machinery Co.,ltd,Produce hydraulic Cylinders(Hydraulic Ram) since 2008,main goal has always been to provide both the china market and overseas markets with high-quality products,by using raw materials which are certified as having undergone quality control.we has the complete design and engineering capability to support your custom and standard hydraulic cylinder needs.Throughout the product life-cycle, we offer full support and development aiming to deliver continuous improvement.
Zhongxin cylinders are used in a wide variety of applications and markets. We have supplied cylinders for use in:
Materials Handling Typical applications: Mobile & Static Hoists & Cranes, Conveying Equipment, Lifting Arms & Front End Loaders.
Agricultural Typical applications: Tillage Bars, Harvester Headers, Spraying Equipment, Seed Drills, Wool Presses, Slashers & Mowers.
Waste Management Typical applications: Static & Mobile Compactors, Transfer Stations, Road Sweepers, Liquid Vacuum Trucks.
Transport Typical applications: Trailers: Side Tippers, Car Transporters, Low Loaders, Deck Widening, Tilt Trays.
Custom as your special requirements
Inspection Equipment
FAQ
1.What kind of products do you sell?
This warranty doen not cover damages caused by the use of defective articles,worn out articles,wrong use of the
articles,non-observance of both above mentioned general instructions for first installation and warning ans safety measures for dumpers,as well as obvious
tampering of articles.
Zhongxin's obligation is subject to confirmation of the claim by our inspection Dep.
Generally ,We can deduct the compensation value or send a new one or a new seal kits set in the following order.
Warranty Procedures
1,Description of failure
2,Cylinder model and manufacturing date as laser engraved on all cylinders
3,Invoice Number and Date
