Tie-rod Hydraulic Cylinders Medium Duty, Tie Rod Construction Factory Customization
Tie-rod Hydraulic Cylinders Medium Duty, Tie Rod Construction Factory Customization
HYDRAULIC TIE-ROD CYLINDERS - 2500 PSI TR&3000PSITR

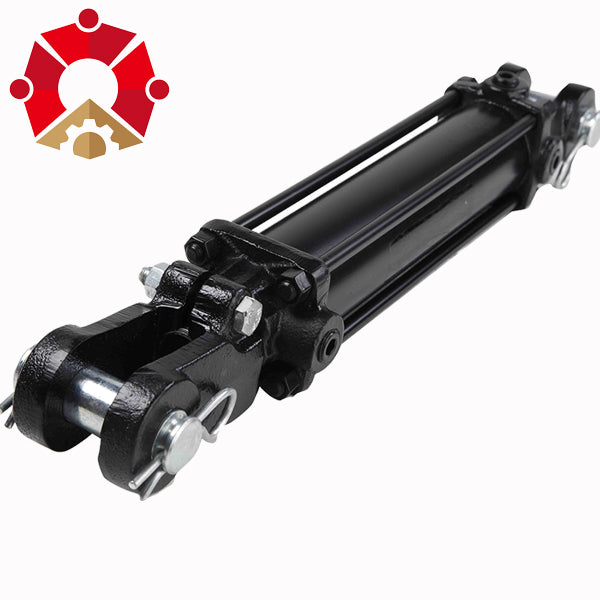

2500PSI TIE ROD DOUBLE ACTING CYLINDER
|
ROD: Steel 1045, rod with 28-32 HRC hardness, 0.001"chrome thickness. ASTM B117-18 salt spray testing up to 96 hours. TUBE: Precision honed steel for extended seal life. GLAND: Ductile Iron, drilled oil passages. PISTON: Ductile Iron, for increased durability. END MOUNTS: Ductile Iron female clevis with pins and clips. With 2 ORB ports at 90°to each other for flexibility of assembly. |

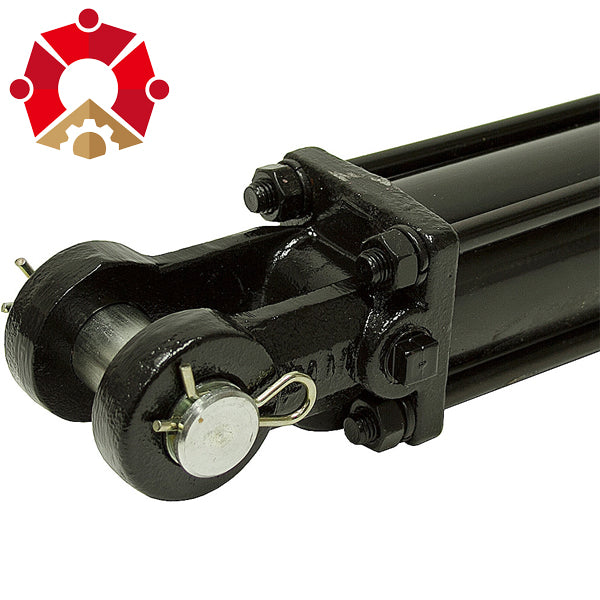

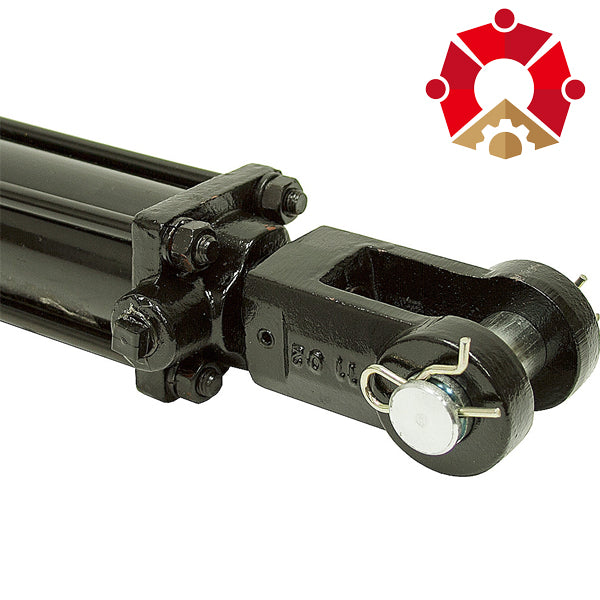

PIN: Steel, zinc plated. PORTS: Standard NPT (SAE Available upon request). ROD CLEVIS: Ductile Iron, thread female clevis with pins and clips included. Adjustable with locking bolt. SEALS: Top quality, Hallite Brand Seals. PAINT: High quality paint for corrosion resistance up to 360 hours. Standard color is Black. Custom colors are available. |
*All DIMENSIONS ARE INCHES.
|
BORE |
ROD THREAD |
PORTS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
2.00" |
1 1/8-12 UNF |
3/8 NPT |
10.25" |
M10 |
1.0" |
2.125" |
3.502" |
2.50" |
1.165" |
2.008" |
2.504" |
|
2.50" |
1 1/8-12 UNF |
3/8 NPT |
10.25" |
M10 |
1.0" |
2.125" |
3.502" |
2.50" |
1.165" |
2.008" |
2.504" |
|
3.00" |
1 1/4-12 UNF |
1/2 NPT |
10.25" |
M12 |
1.0" |
2.125" |
3.502" |
2.56" |
1.165" |
2.008" |
2.717" |
|
3.50" |
1 1/4-12 UNF |
1/2 NPT |
10.25" |
M14 |
1.0" |
2.125" |
3.502" |
2.56" |
1.165" |
2.008" |
2.717" |
|
4.00" |
1 1/4-12 UNF |
1/2 NPT |
10.25" |
M16 |
1.0" |
2.125" |
3.502" |
2.76" |
1.165" |
2.008" |
2.717" |
For 8.00" ASAE STROKE: A= 12.25" For TR2.5-3516-ASAE-ZX , Rod diameter is 1.50"
For 16.00" ASAE STROKE: A= 15.50" , C= 1.25" For TR2.5-4016-ASAE-ZX, Rod diameter is 2.00"
3000PSI TIE-ROD DOUBLE ACTING CYLINDER
|
ROD: Steel 1045, rod with 28-32 HRC hardness, 0.001"chrome thickness. ASTM B117-18 salt spray testing up to 96 hours. TUBE: Precision honed steel for extended seal life. GLAND: Ductile Iron, drilled oil passages. PISTON: Ductile Iron, for increased durability. END MOUNTS: Ductile Iron female clevis with pins and clips. With 2 ORB ports at 90°to each other for flexibility of assembly. |
PIN: Steel, zinc plated. PORTS: Standard NPT (SAE Available upon request). ROD CLEVIS: Ductile Iron, thread female clevis with pins and clips included. Adjustable with locking bolt. SEALS: Top quality, Hallite Brand Seals. PAINT: High quality paint for corrosion resistance up to 360 hours. Standard color is Black. Custom colors are available. |
*All DIMENSIONS ARE INCHES.
|
BORE |
ROD THREAD |
PORTS |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
2.00" |
1 1/8-12 UNF |
SAE 8 |
10.25" |
M10 |
1.0" |
2.125" |
3.502" |
2.50" |
1.165" |
2.008" |
2.504" |
|
2.50" |
1 1/8-12 UNF |
SAE 8 |
10.25" |
M10 |
1.0" |
2.125" |
3.502" |
2.50" |
1.165" |
2.008" |
2.504" |
|
3.00" |
1 1/4-12 UNF |
SAE 8 |
10.25" |
M12 |
1.0" |
2.125" |
3.502" |
2.56" |
1.165" |
2.008" |
2.717" |
|
3.50" |
1 1/4-12 UNF |
SAE 8 |
10.25" |
M14 |
1.0" |
2.125" |
3.502" |
2.56" |
1.165" |
2.008" |
2.717" |
|
4.00" |
1 1/4-12 UNF |
SAE 8 |
10.25" |
M16 |
1.0" |
2.125" |
3.502" |
2.76" |
1.165" |
2.008" |
2.717" |
|
5.00" |
1 1/2-12 UNF |
SAE 12 |
12.25" |
M20 |
1.25" |
2.125" |
3.502" |
2.95" |
1.200" |
2.118" |
2.953" |
For 8.00" ASAE STROKE: A= 12.25"
For 16.00" ASAE STROKE: A= 15.50" , C= 1.25" For TR3.0-4016-ASAE-ZX, Rod diameter is 2.00"
SALES AND SERVICE NETWORK
Our Advanced Equipment
Including CNC lathe machines, deep hole boring machines, roller burnish machines, ultrasonic cleaning machines, automatic
polishing machine, automatic painting line,Robot welding equipment, performance test bed, tensile testing machine etc.
We have more than 20 years working experience to product hydraulic cylinder.
A :We have professional R&D team with rich design experience.
We also establish strict but scientific product testing system so that products have perfect
performance.
Q2: How to choose which model hydraulic cylinder to buy?
A: Please kindly send us your drawings, models or providing us your parameters and
specification of the hydraulic cylinder like sleeves O.D., total stroke, rated pressure, closed length,
vehicle body length, etc. We can determine the most suitable model for you.
Q3: How long it will take from ordering to delivering?
A: It depends on the ordering quantity. Generally we will take 15-30days. If there are any changes, we will inform you in time.
